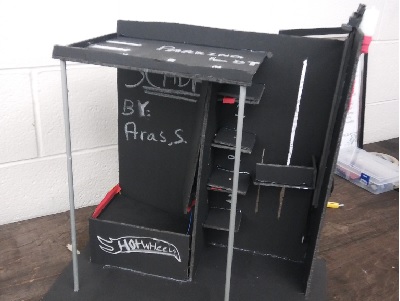

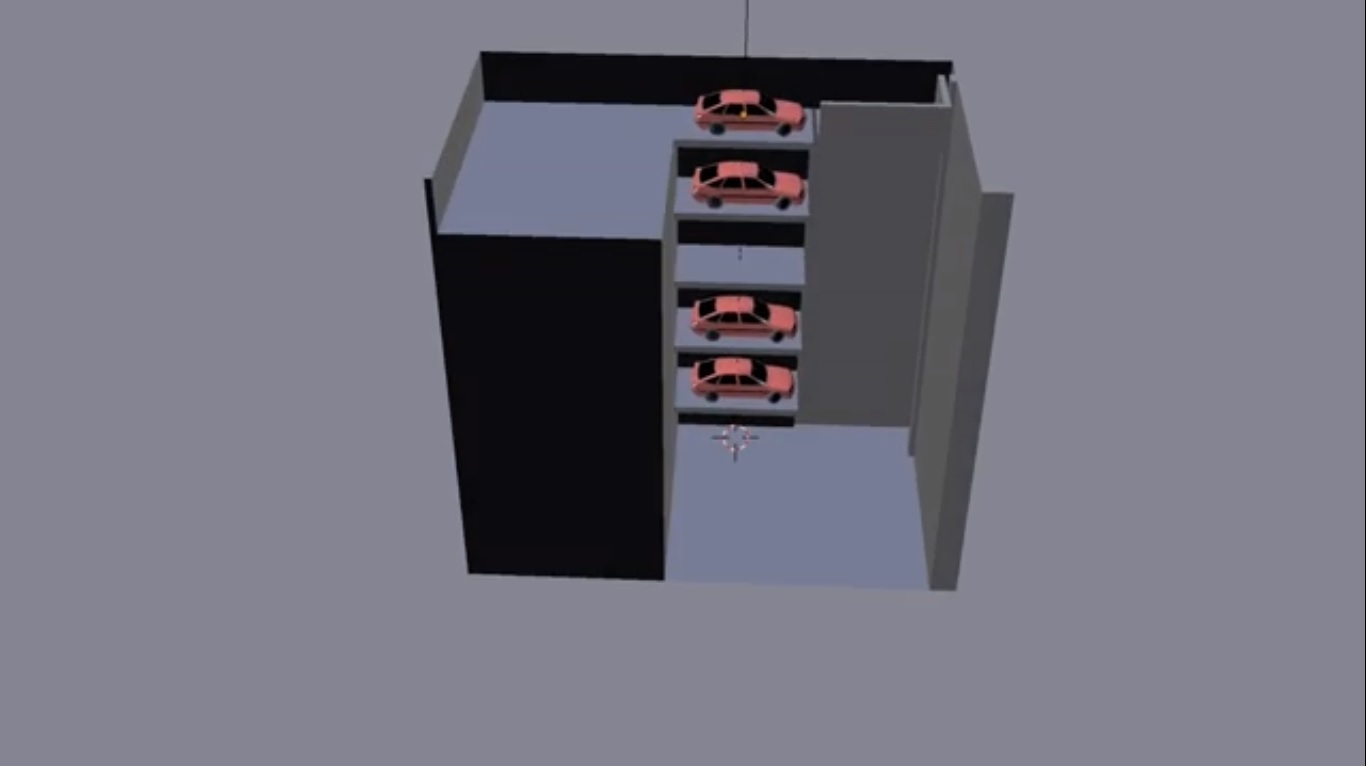

Automated Car Parking

SCADA lab Project

This project demonstrates an automated car parking system. This will be installed at a existing parking lot with using 30% of space to yield same amount of parking spots. This system runs on one major controller that keeps track of all sensors, based on input the controller updates the HMI. There is a secondary motor driver that moves the stepper motors for the belt drive that carries the vehicles to each level. The system demonstrates SCADA methods learnt in the lab and combine them with HMI interface for user.

View Proposal
• -
• Category: Lab Project

Close Project

Mechanical Oscilloscope

Oscilloscope displays waves using a laser pointer

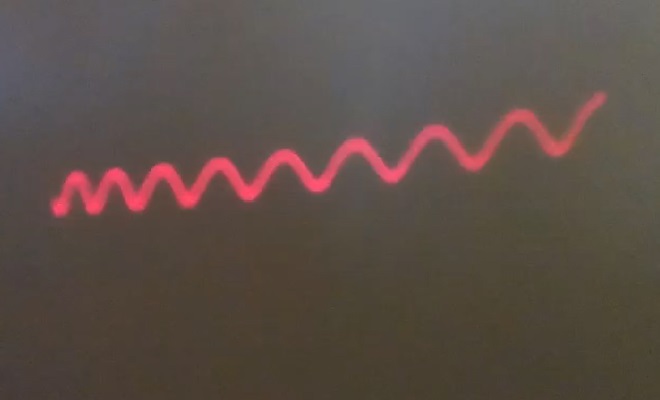

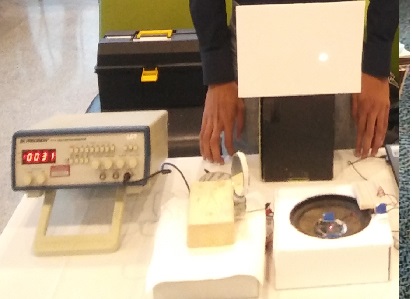

Oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. I made a Mechincal oscilloscope, that uses vibration of a speaker combined with horizontal rotation to display a sine wave using a laser pointer.

• Category: Instrument Design

Close Project

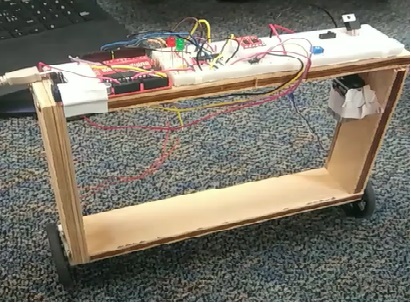

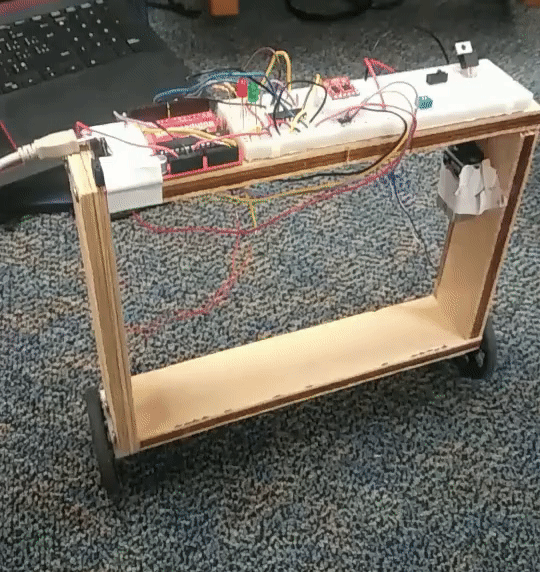

Self Balance Robot

Using arduino 6DOF module and two DC motors.

Self balance Robot is able to balance itself on two wheels by input from 6DOF. The 6DOF is a directional accelerometer, using the X and Z axis robot knows posiotion in space. Programming logic is used to send approprite power to each wheel to keep robot upright.

• Category: Personal Project

Close Project

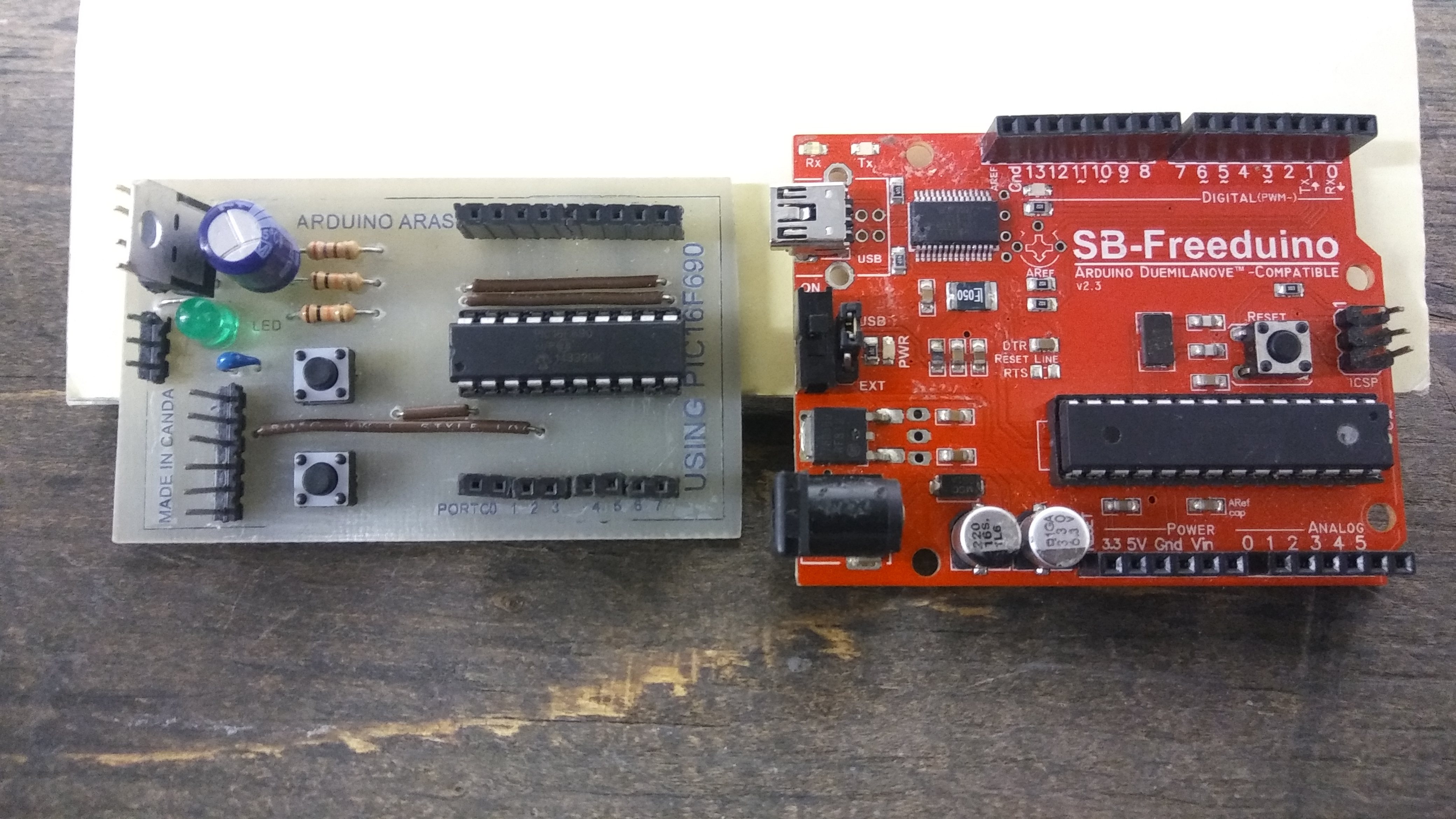

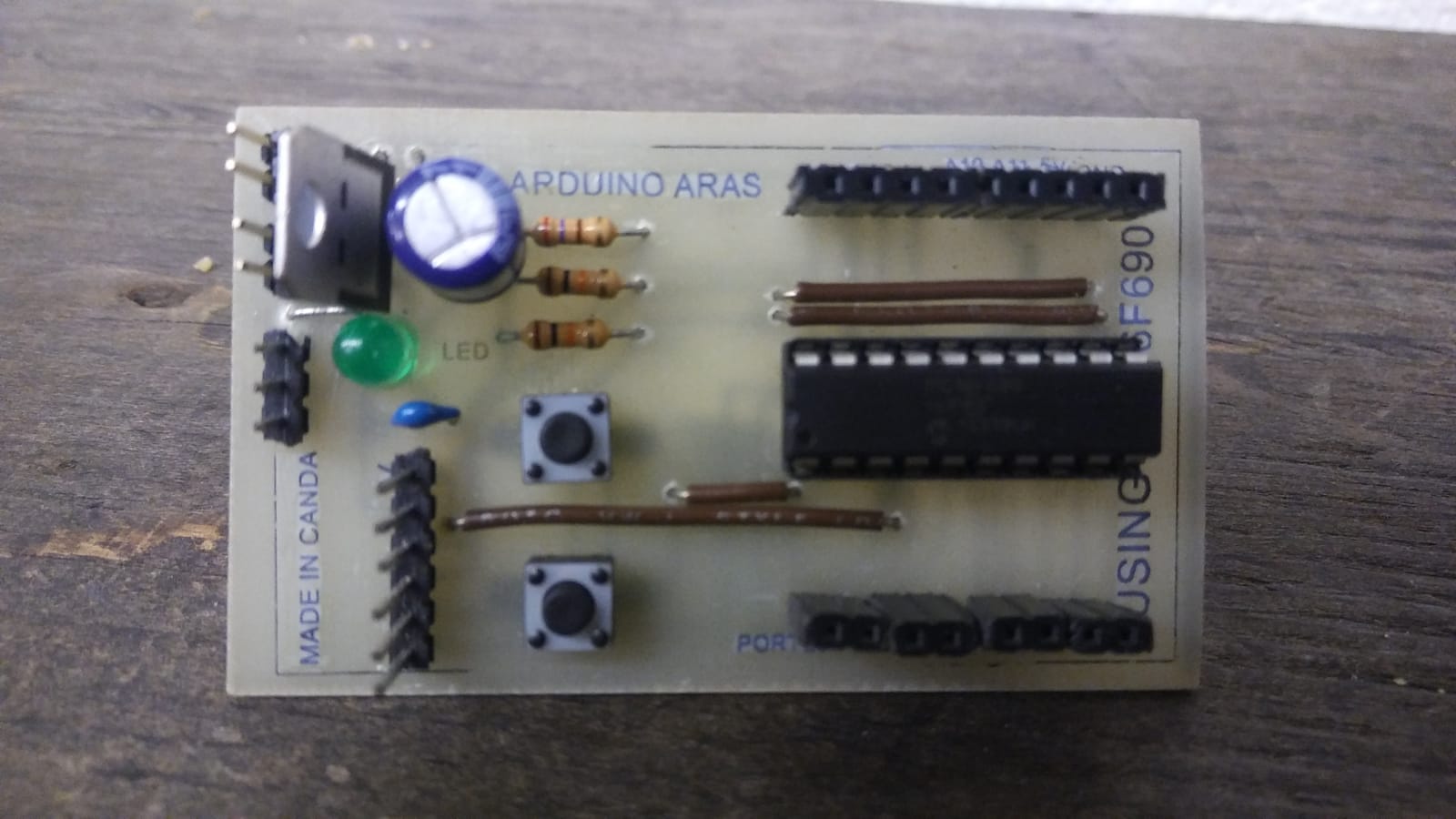

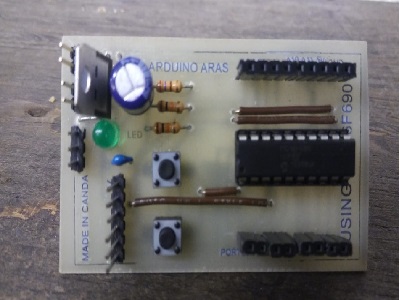

Arduino Aras

Replicated a Arduino Board.

Custom designed arduino using microchip Pic 16F690. Arduino wiring was designed in Eagle CAD. Etched copper board and soldered each part by hand. This was a personal project to make a replica of the open source arduino board. Here is a comparison

• Category: Personal

Close Project

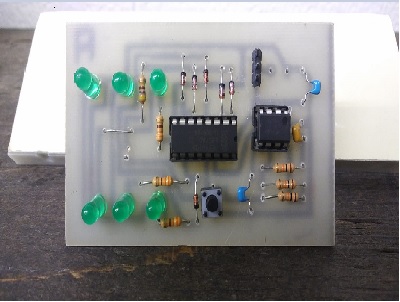

Random number Dice

Generates random number form 1 to 6, like a dice

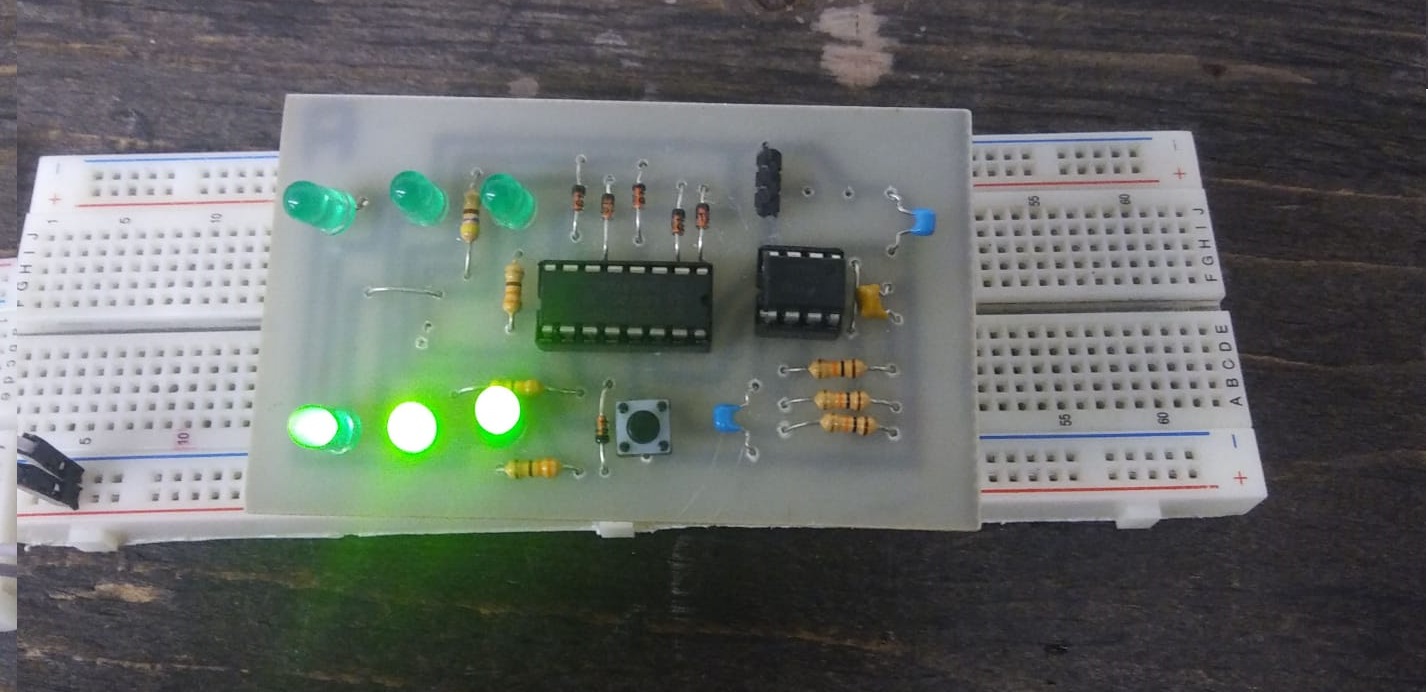

Circuit generates a random number form 1 to 6. Idea is to make a electronic dice roll. The leds are attached to 4075 IC (Combinatorial Logic Chip) and 555 is used as a timer IC. The 555 sends pulse to 4075, then using combination of logic gates the leds turn on.

• Category: Class Project

Close Project

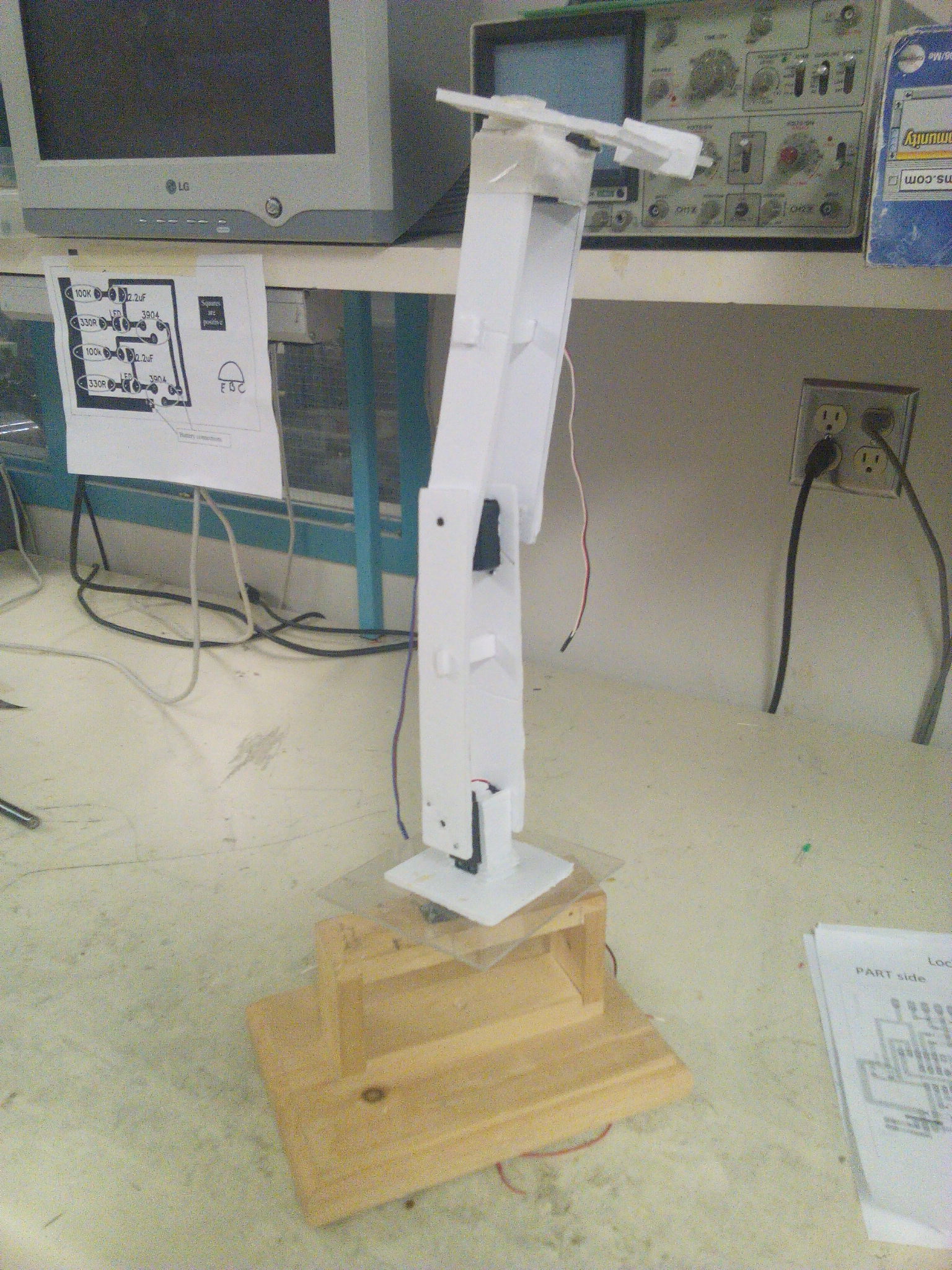

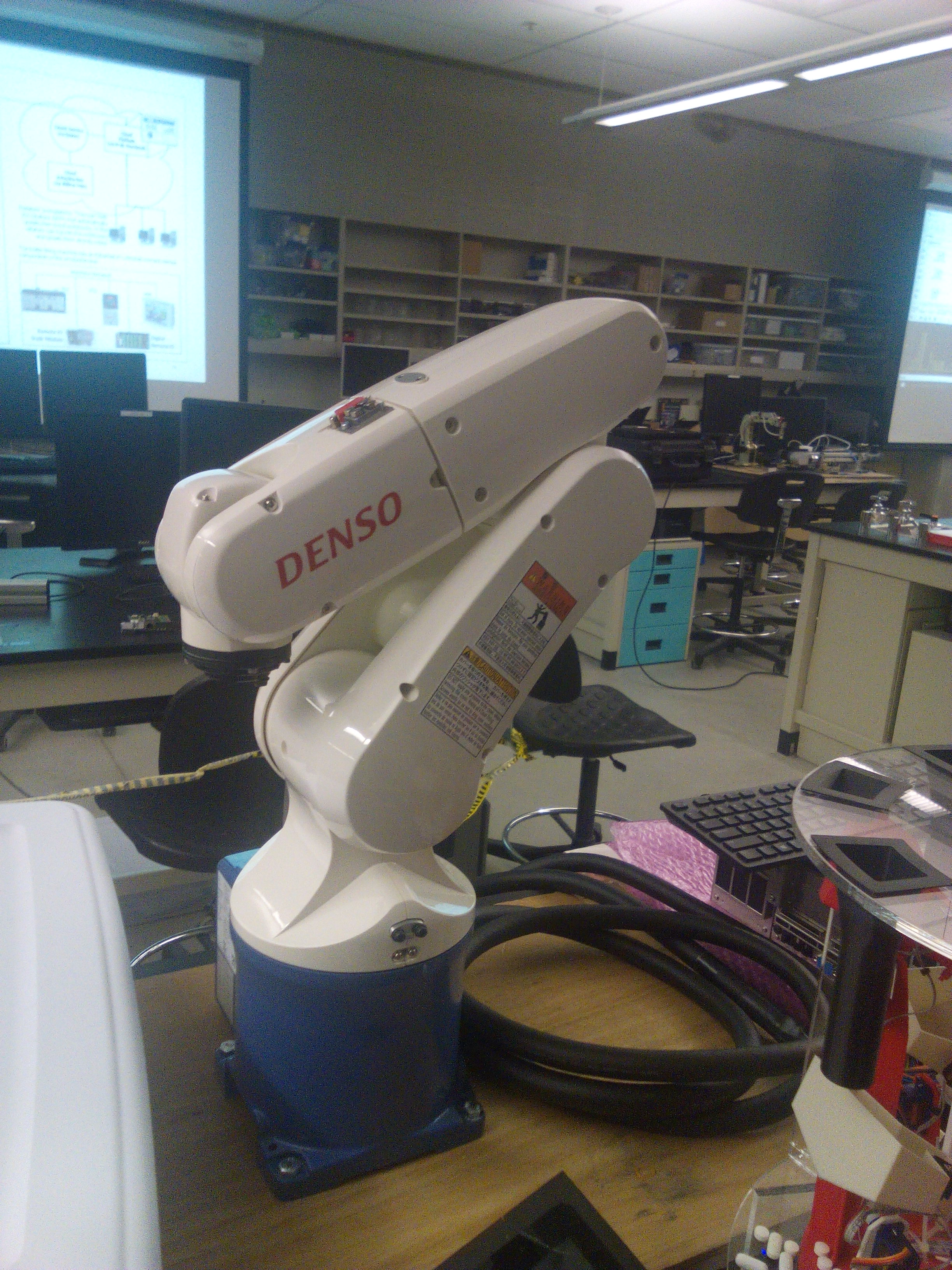

Robot Arm

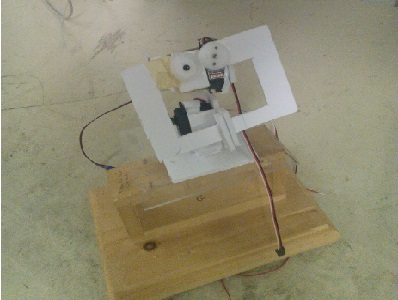

Build a 4 axis robot arm with servo motors..

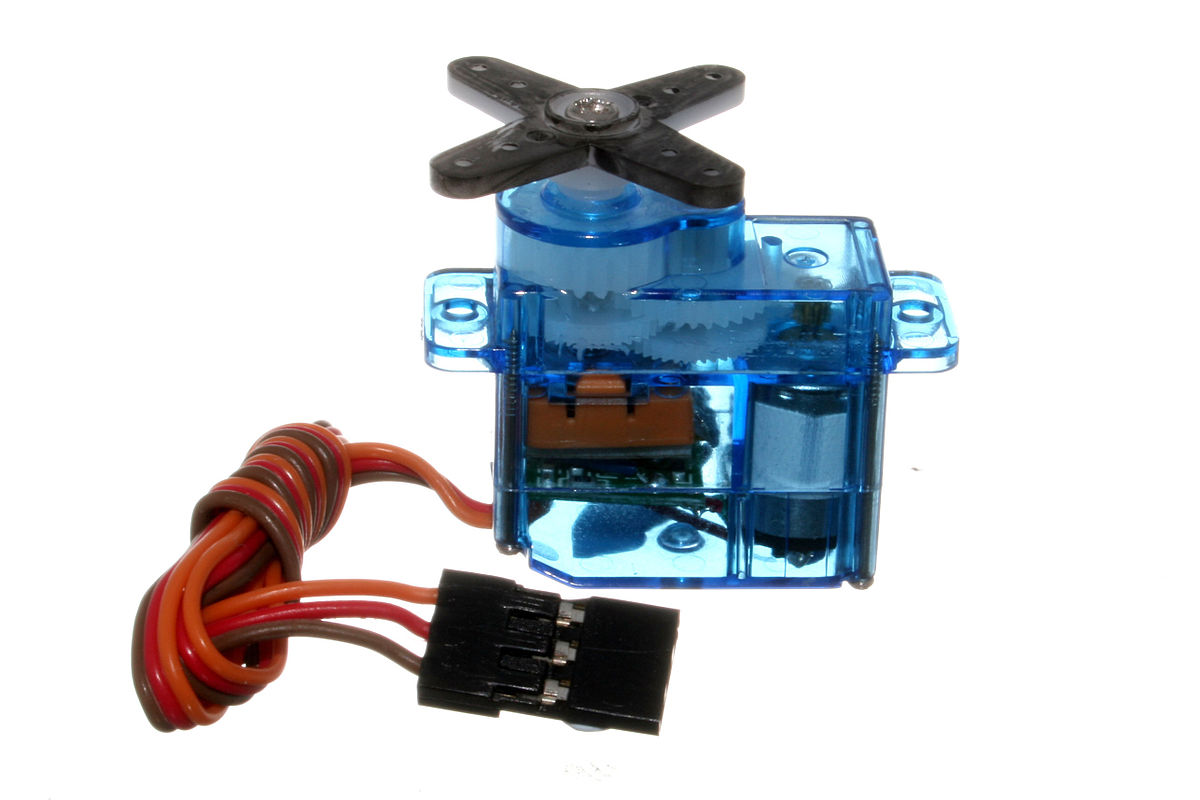

Based on industrial robot arms, This project was made using servos motors for 4 axis including base and claw motion. Each servo is connected to a arduino pwm pin, this gives the servo position.

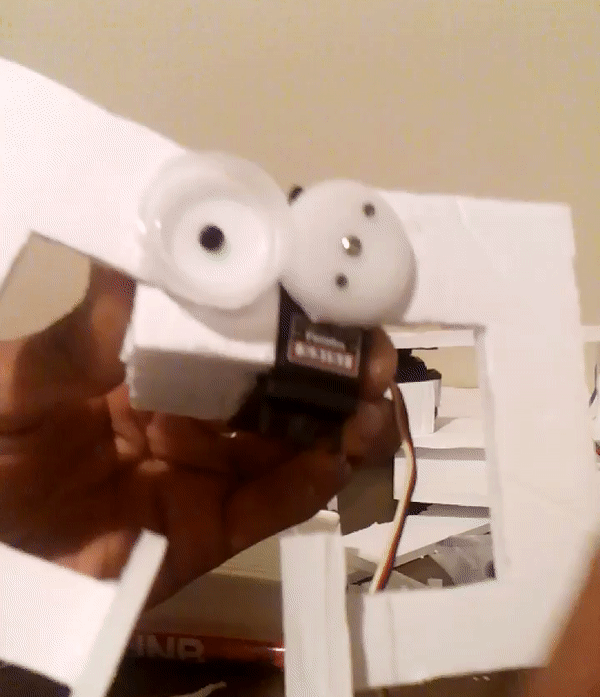

The innivative aspect of this project was that I used bottle caps as gears. This worked as bottle caps have groves and each grove is equally spaced.

• Category: Controls

Close Project

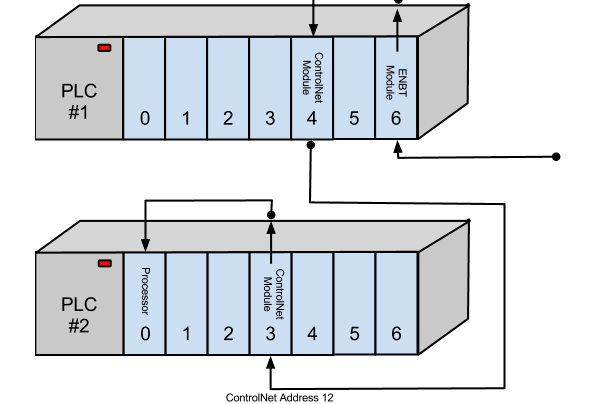

ControlNET & EtherNET

Lab Project

The concepts of ControlNet, Ethernet and their applications to exchange information within a PLC network were examined. Methods and protocols used to communicate between PLC’s and other intelligent devices will also be covered. The parts for this experiment are -Unscheduled messaging using ControlNet and Ethernet.

Local PLC command

Remote PLC command

• -
• Category: Lab Project

Close Project

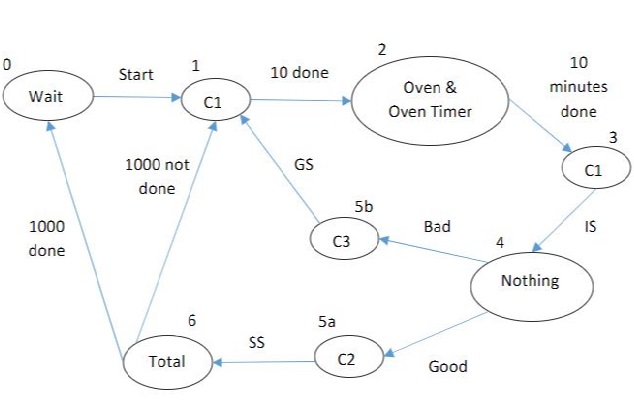

Batch process

Lab Project

Batch production is a method of production that creates several items at the same time in a series of production steps. The items that are created together are known as a batch. In PLC, Batch process includes steps and each step is in a specific order that is started only when previous step is done.

• Category: Lab Project

Close Project

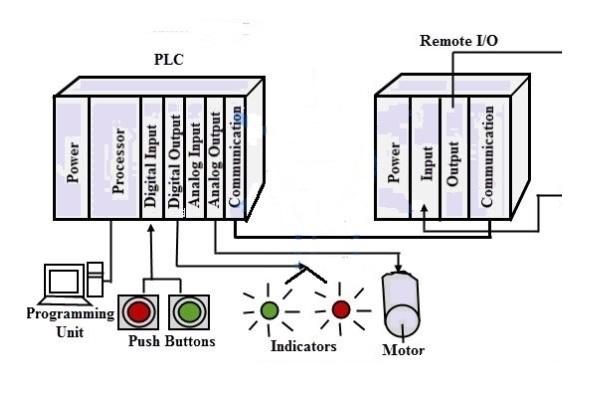

PLC

PLC Analog Control

Designed a PLC control solution to control and monitor the speed of an AC drive, using PowerFlex40 AC Drive. The PLC program can be used to change the desired speed for a motor. The program functions as follows: -Pressing the N.O. ‘UP’ pushbutton should increase the desired speed at a rate of 50RPM/sec -Pressing the N.O. ‘DOWN’ pushbutton should decrease the desired speed at a rate of 50RPM/sec.

• -
• Category: Lab Project

Close Project

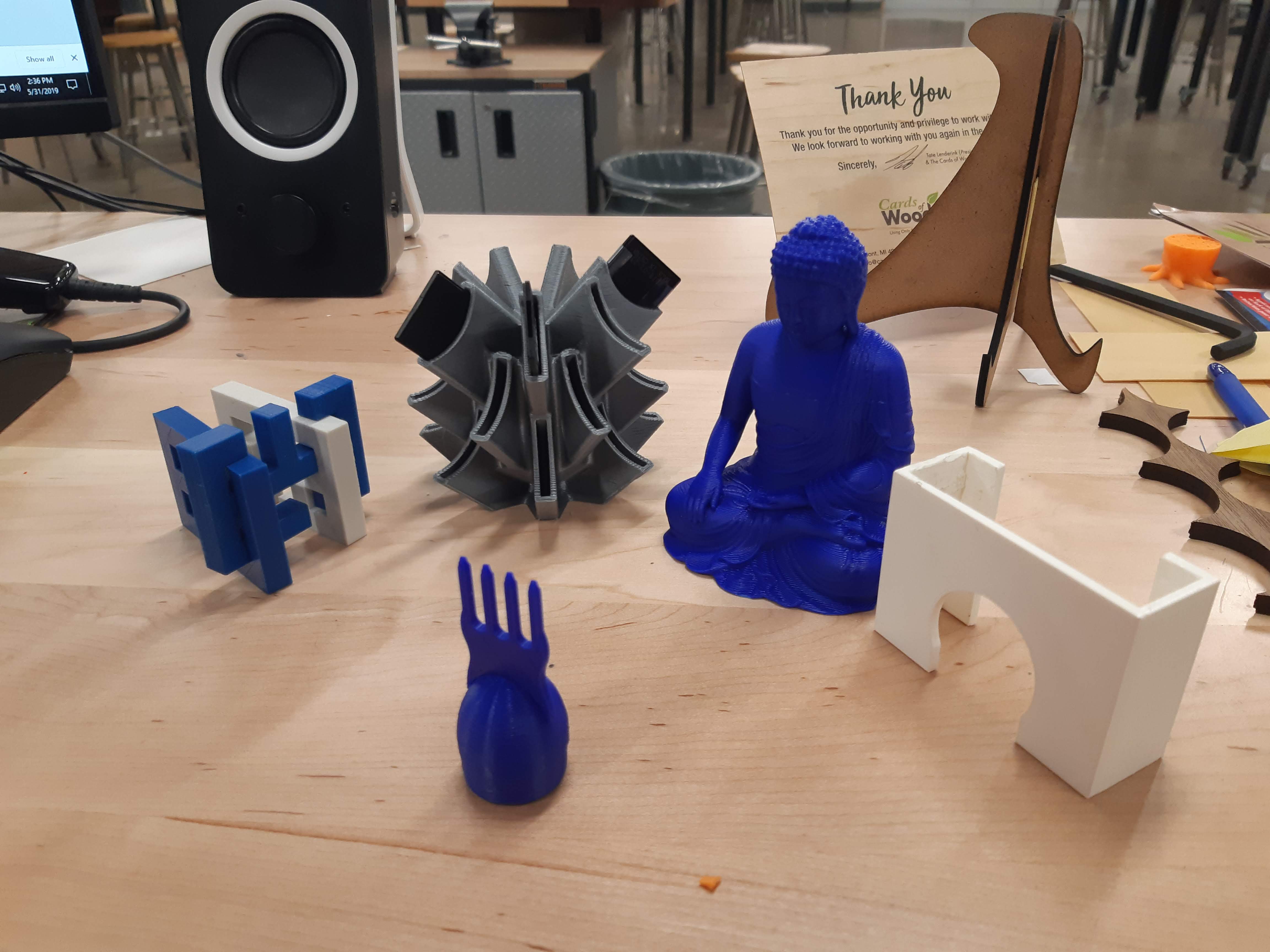

3D prinitng projects

Made with custom deisgns and design from thingverse, printed on prusa i3.

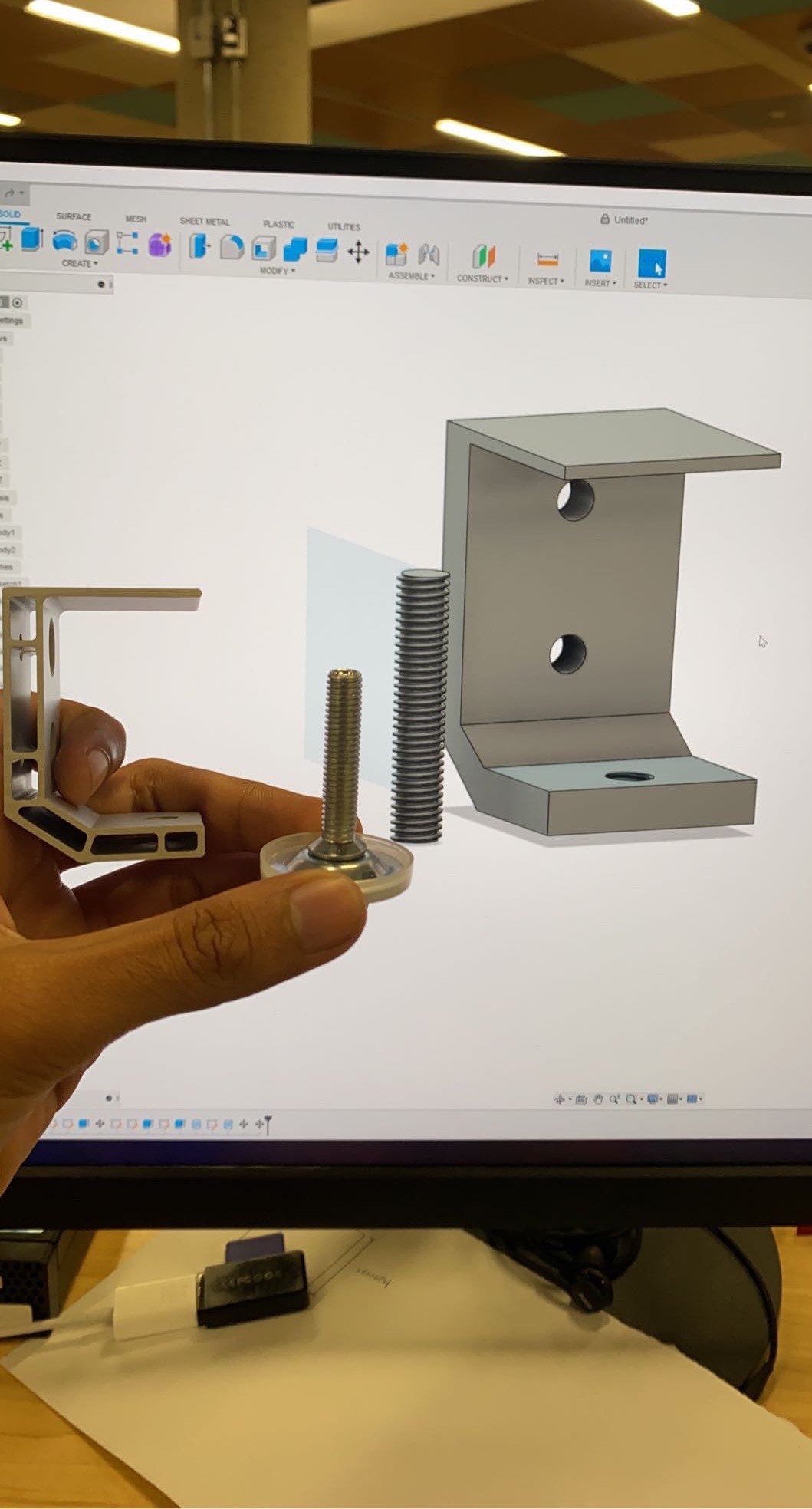

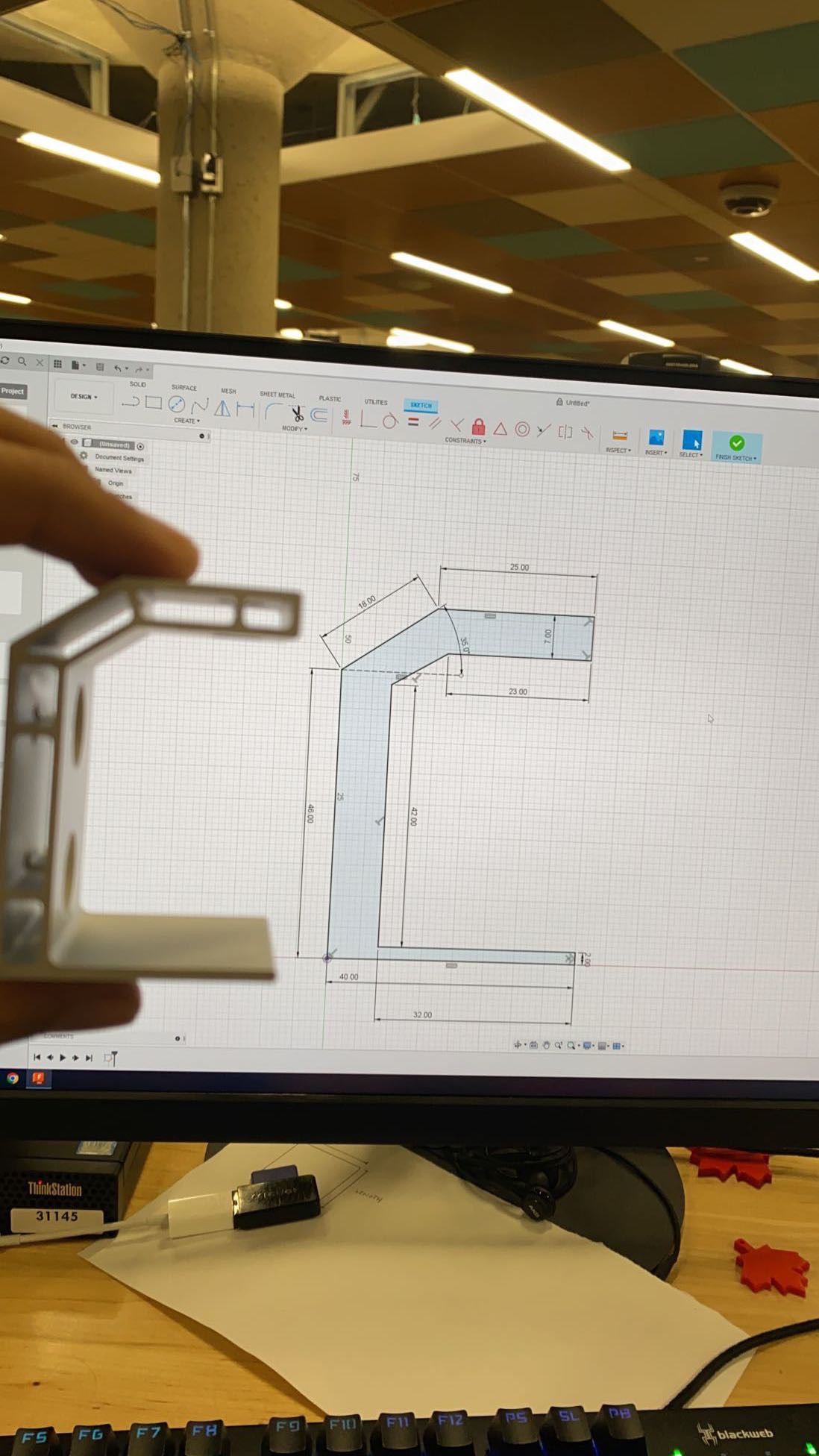

CAD design practice using a G clmap

Goku figurine

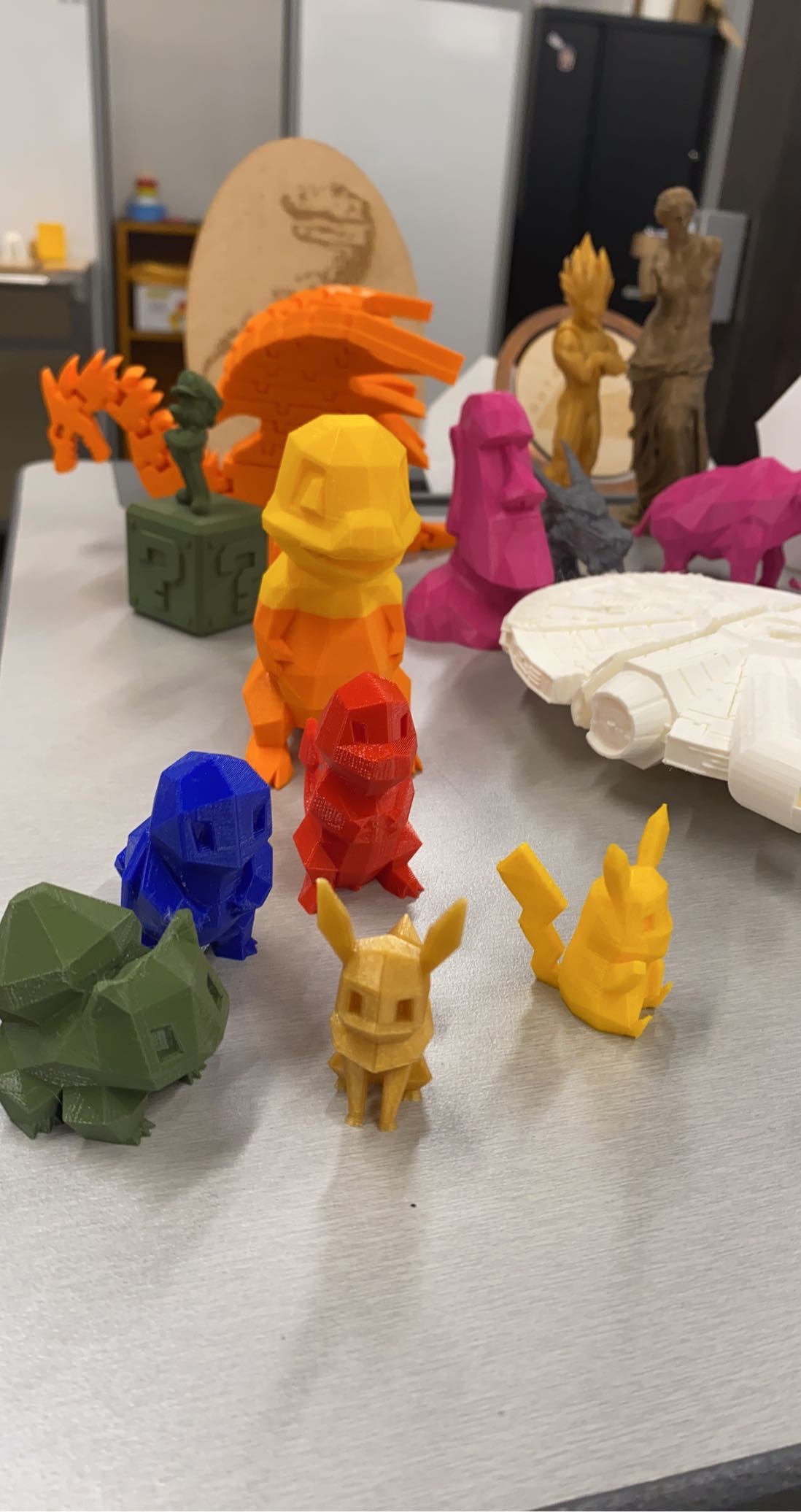

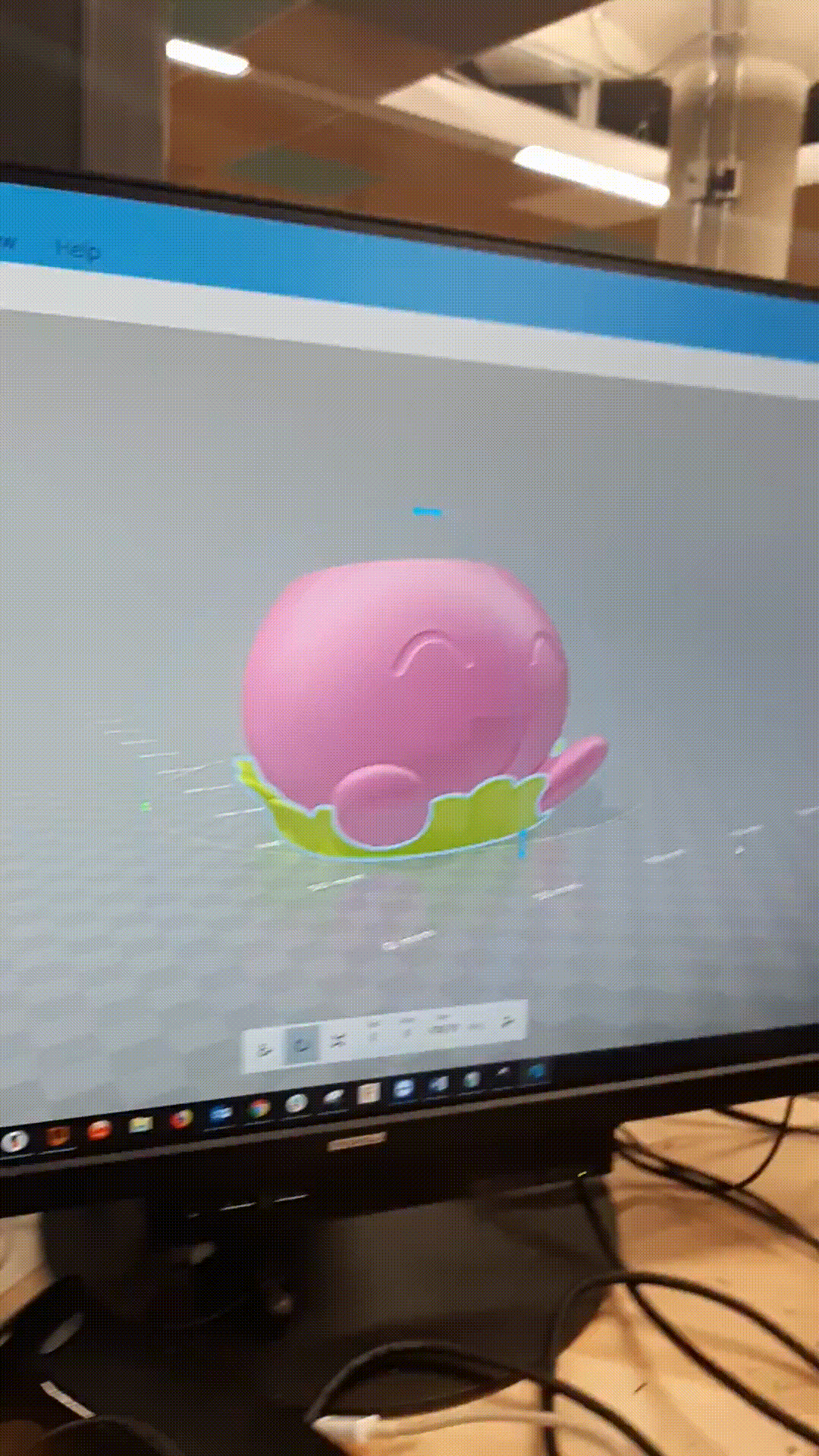

Pokemon flower pot

Dragon balls and holder custom made based on anime

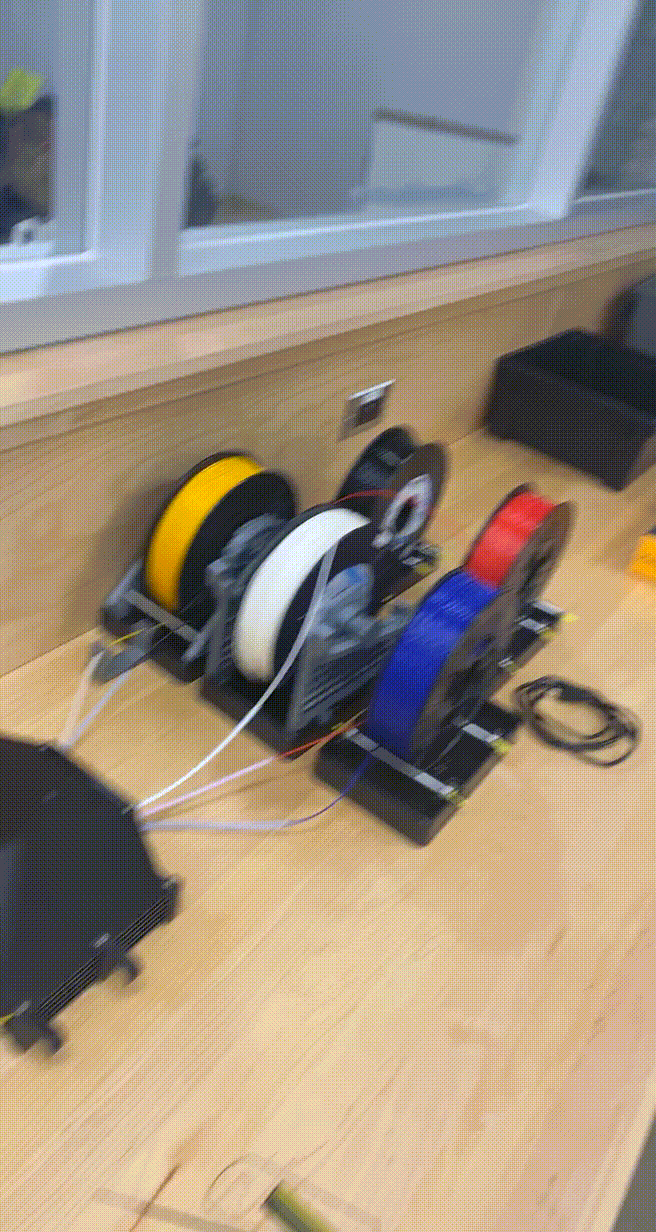

Multi color print test and results

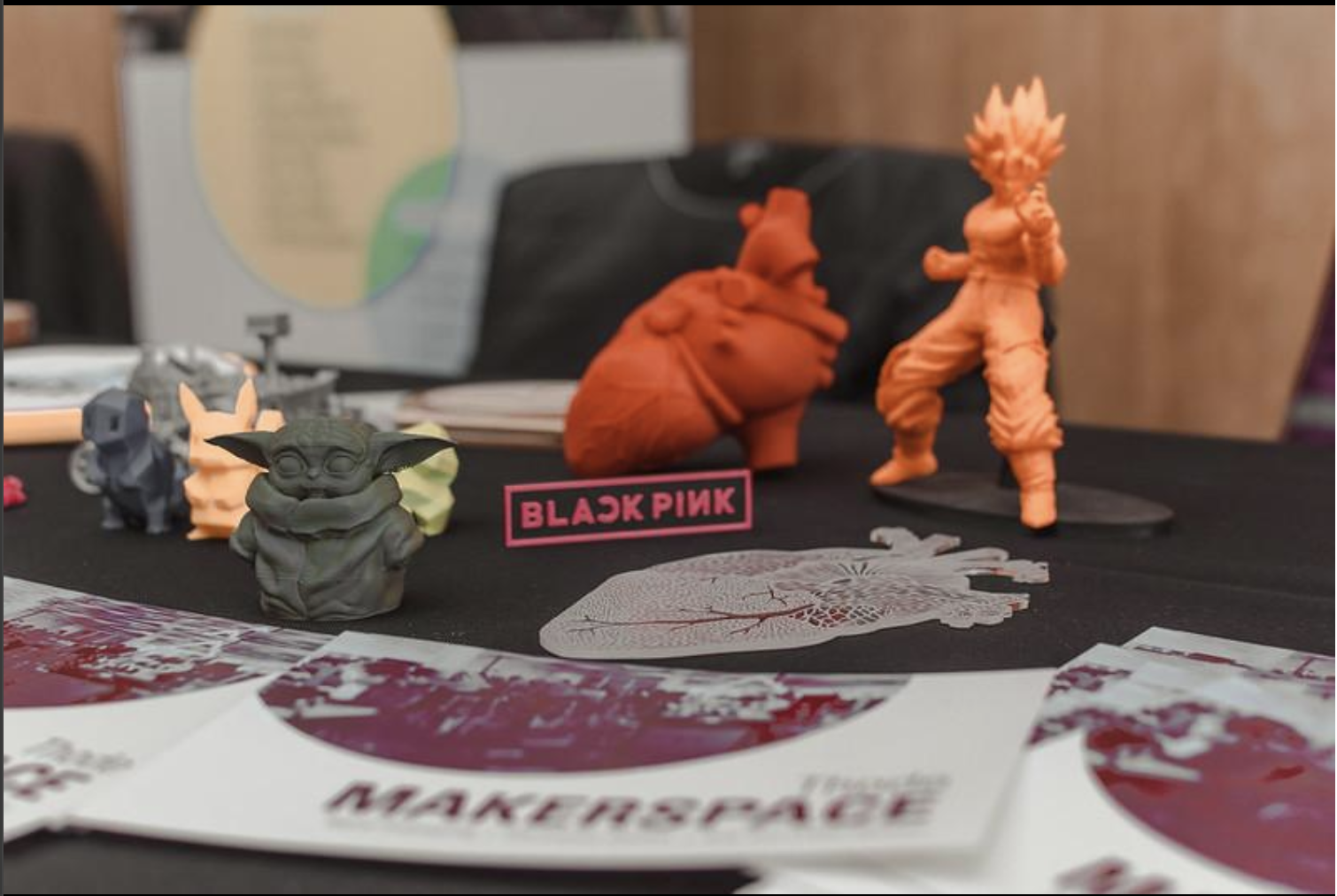

Goku figurine, baby yoda and blackpink keychain

Close Project

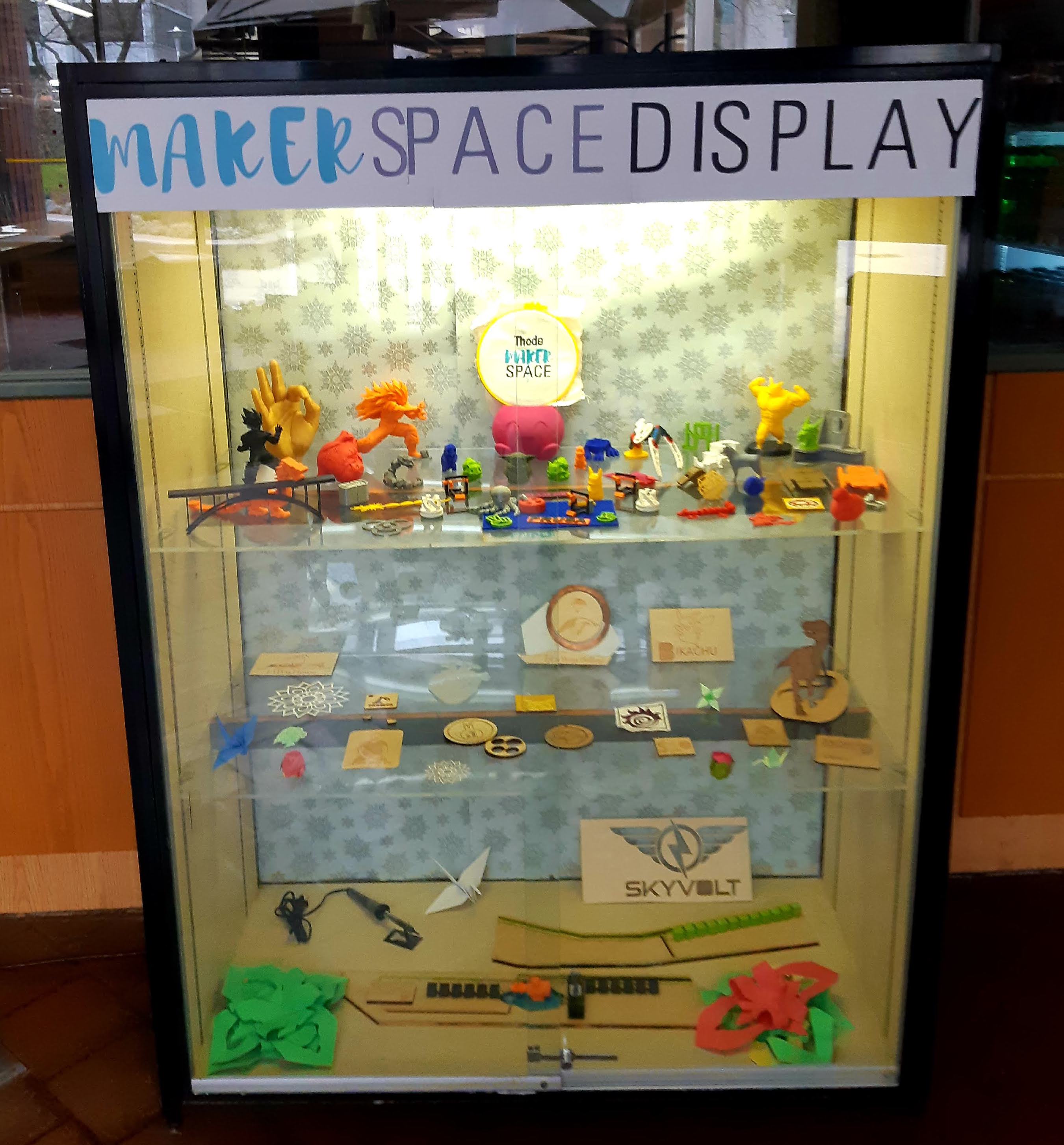

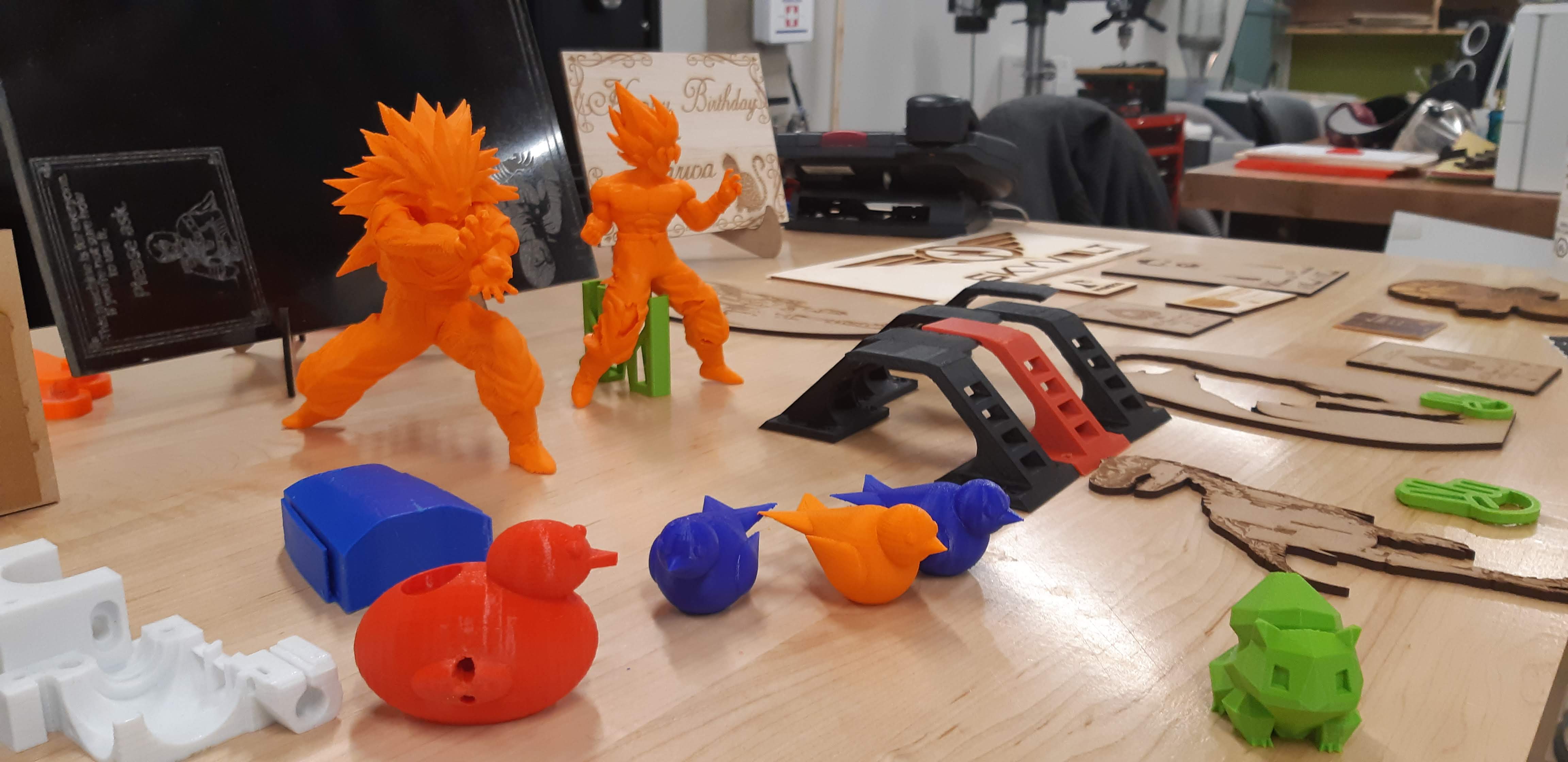

Display cabinet

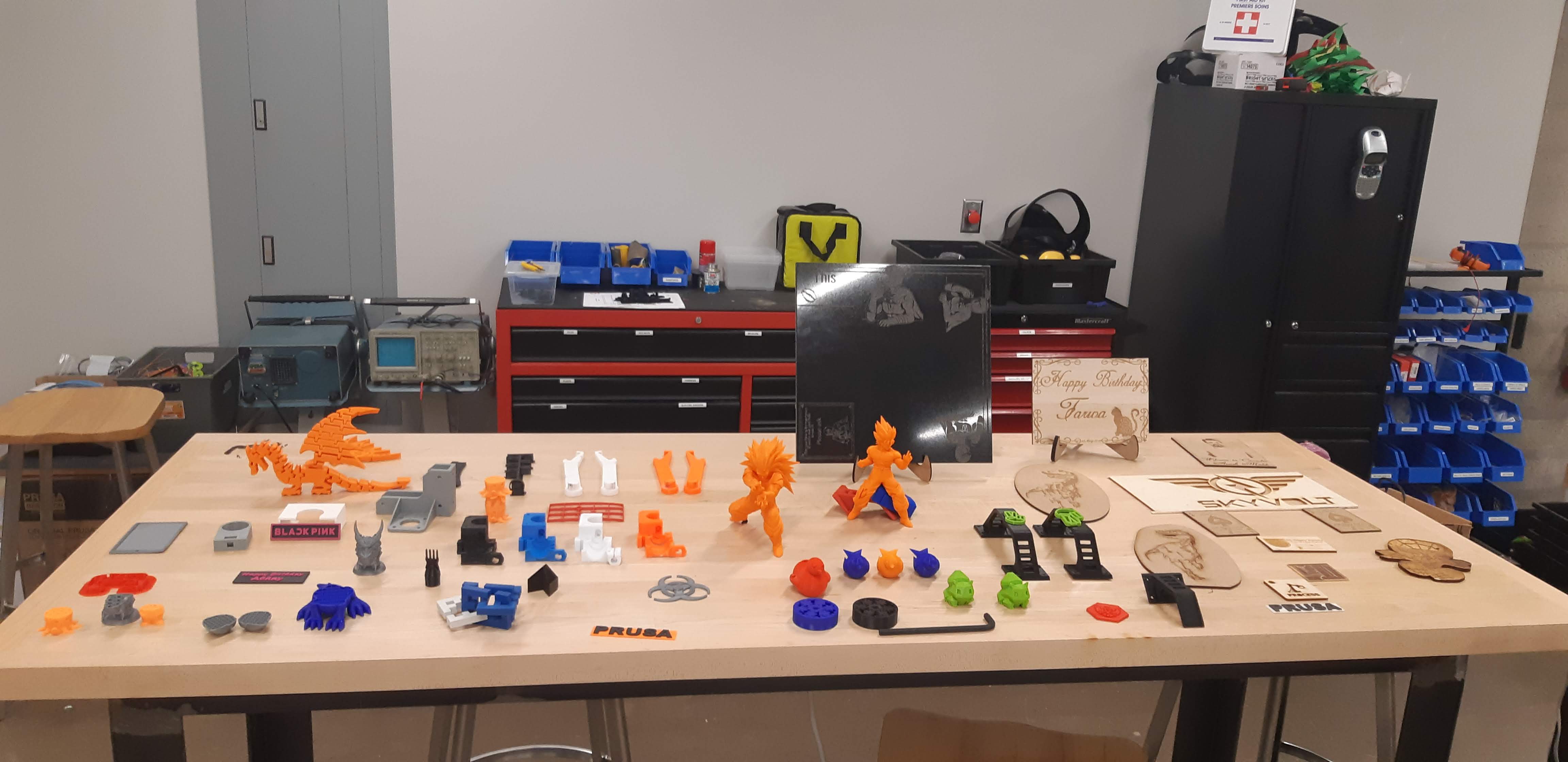

Installed a display cabinet at entrance of building to get more foot traffic in makerspace

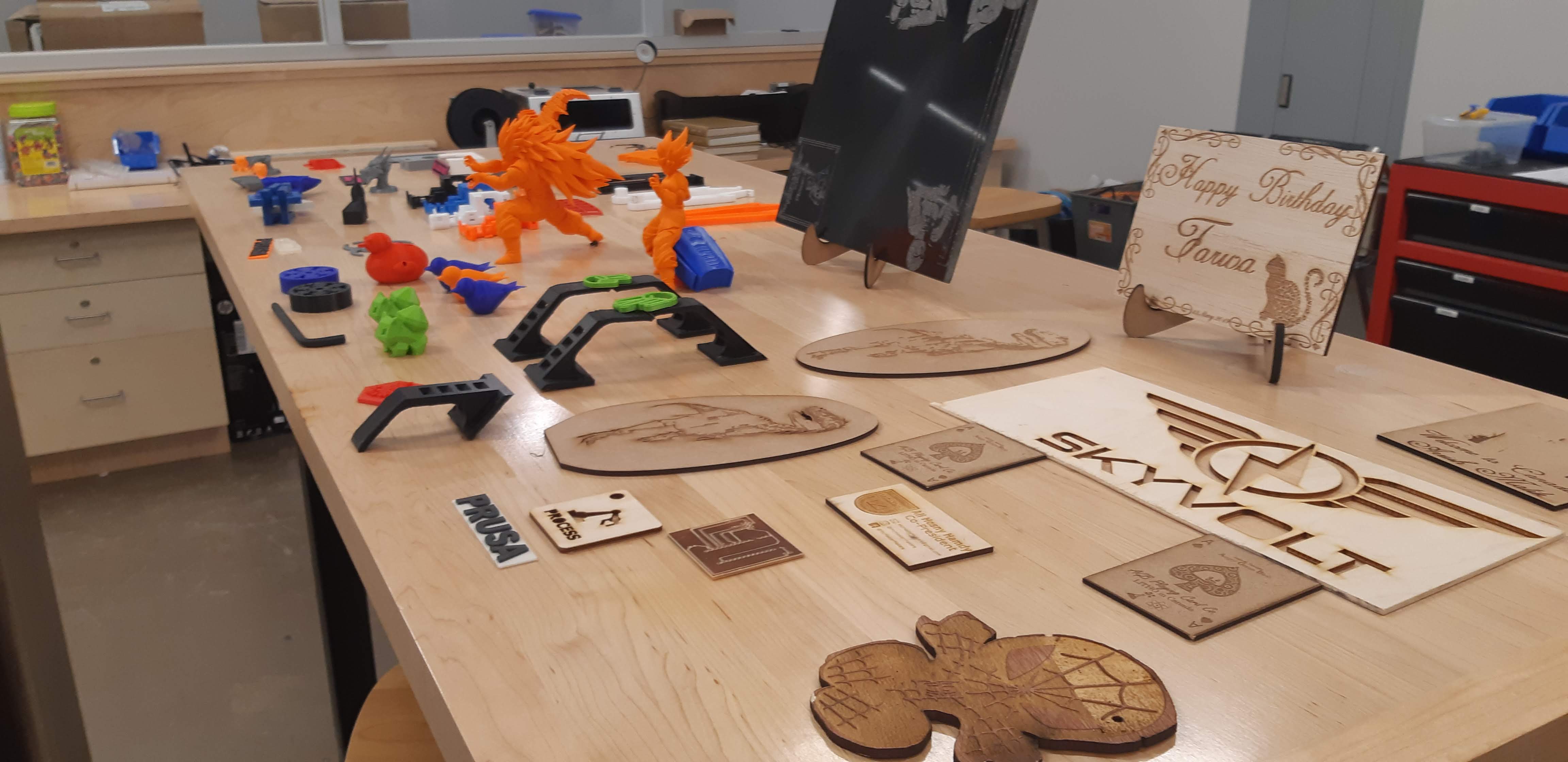

Printed various designs and parts to attract people and spark creativity

Final version of display cabinet with new additions

Close Project

Laser Projects

All projects were designed by and printed by me on trotec speedy 300

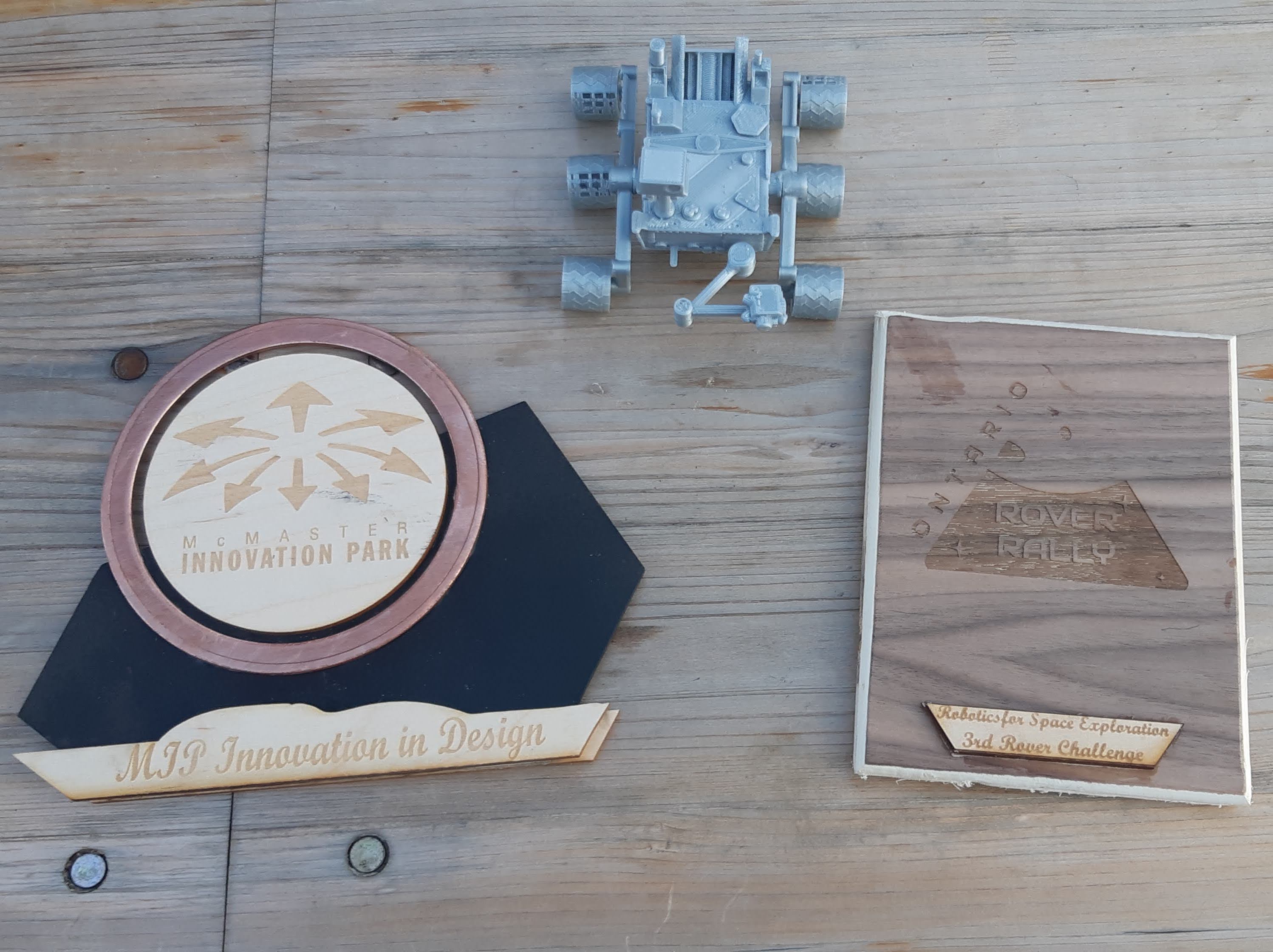

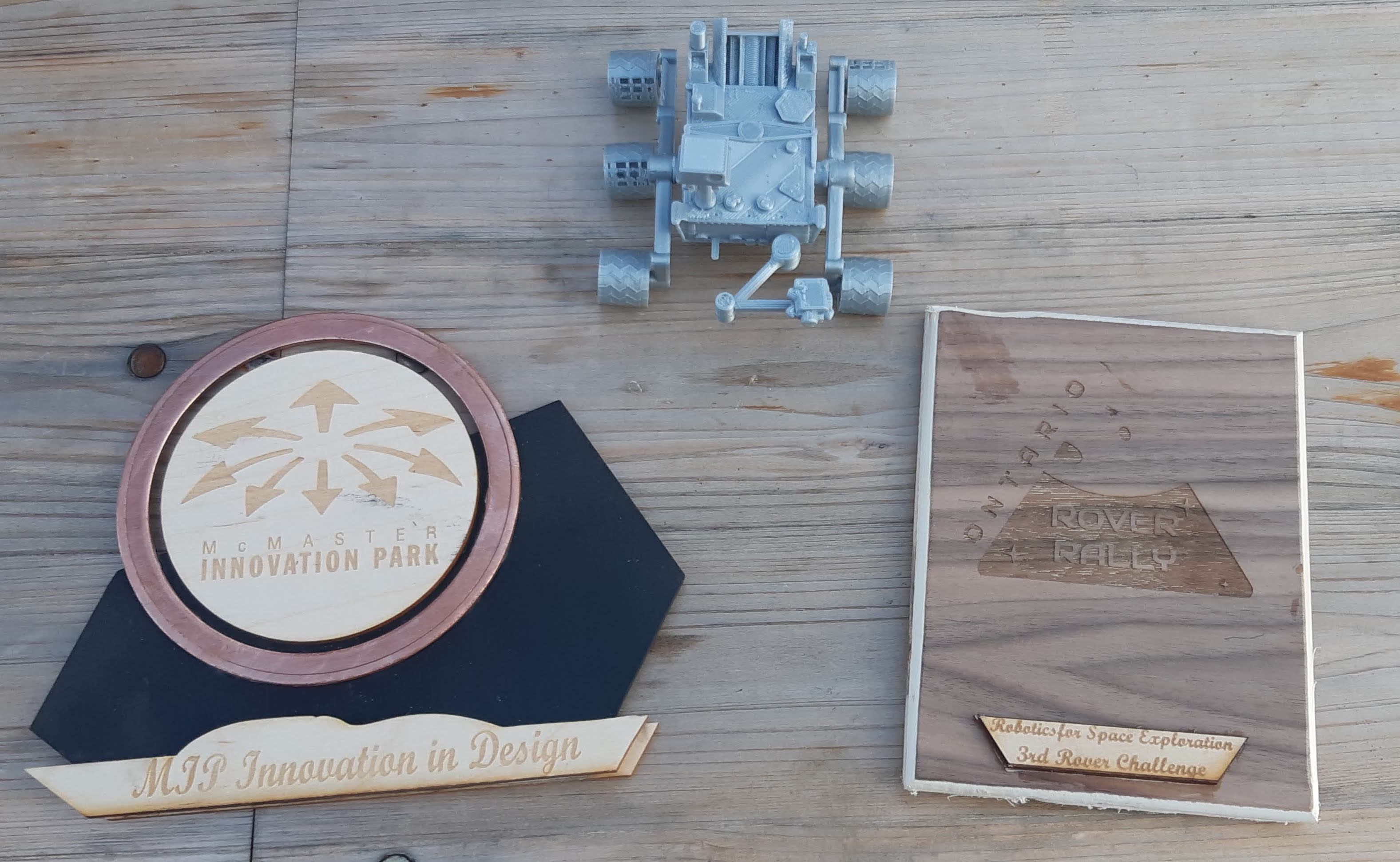

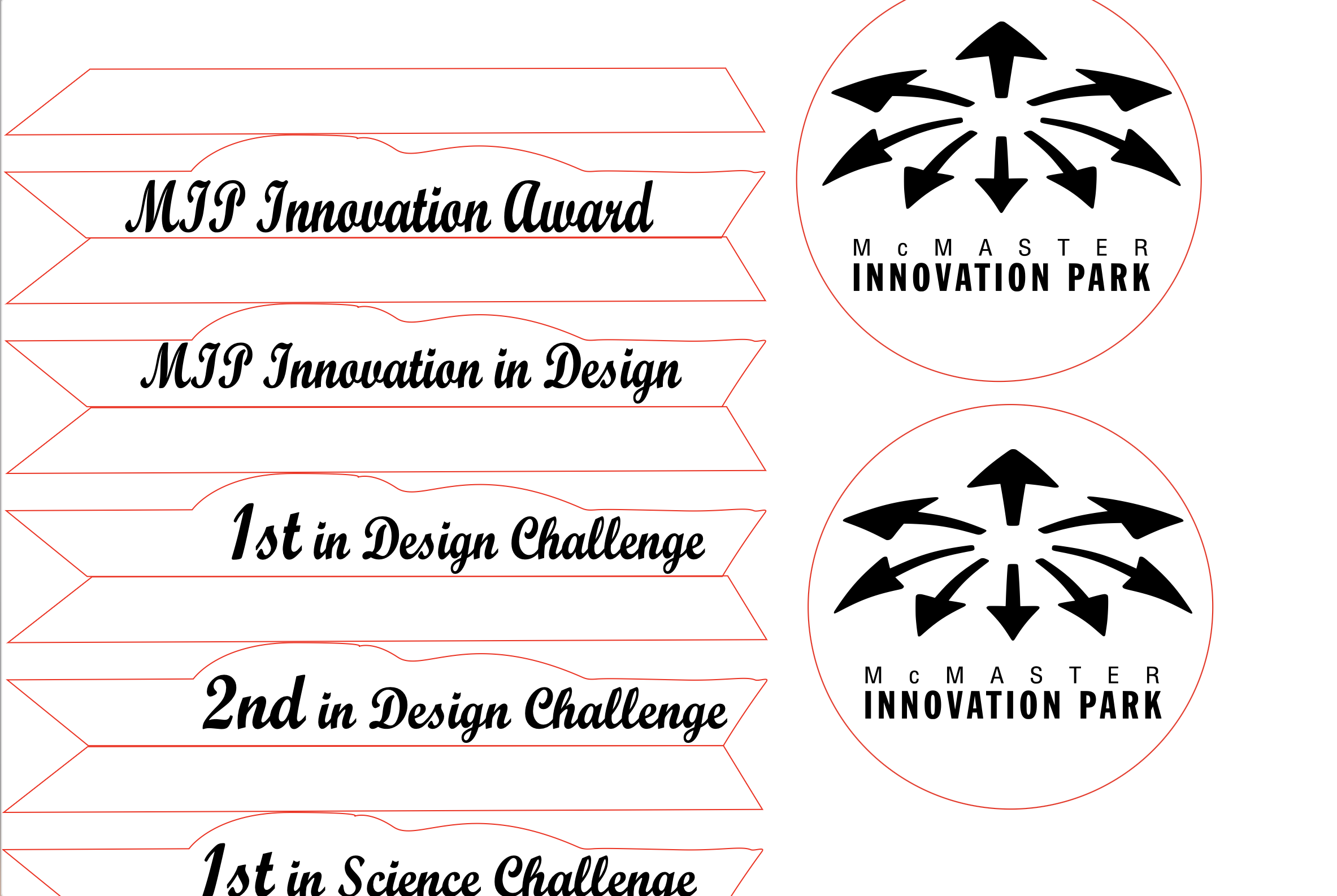

Custom trophy for McMaster Mars Rover competition

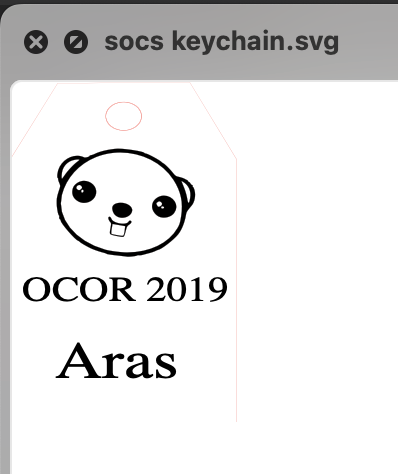

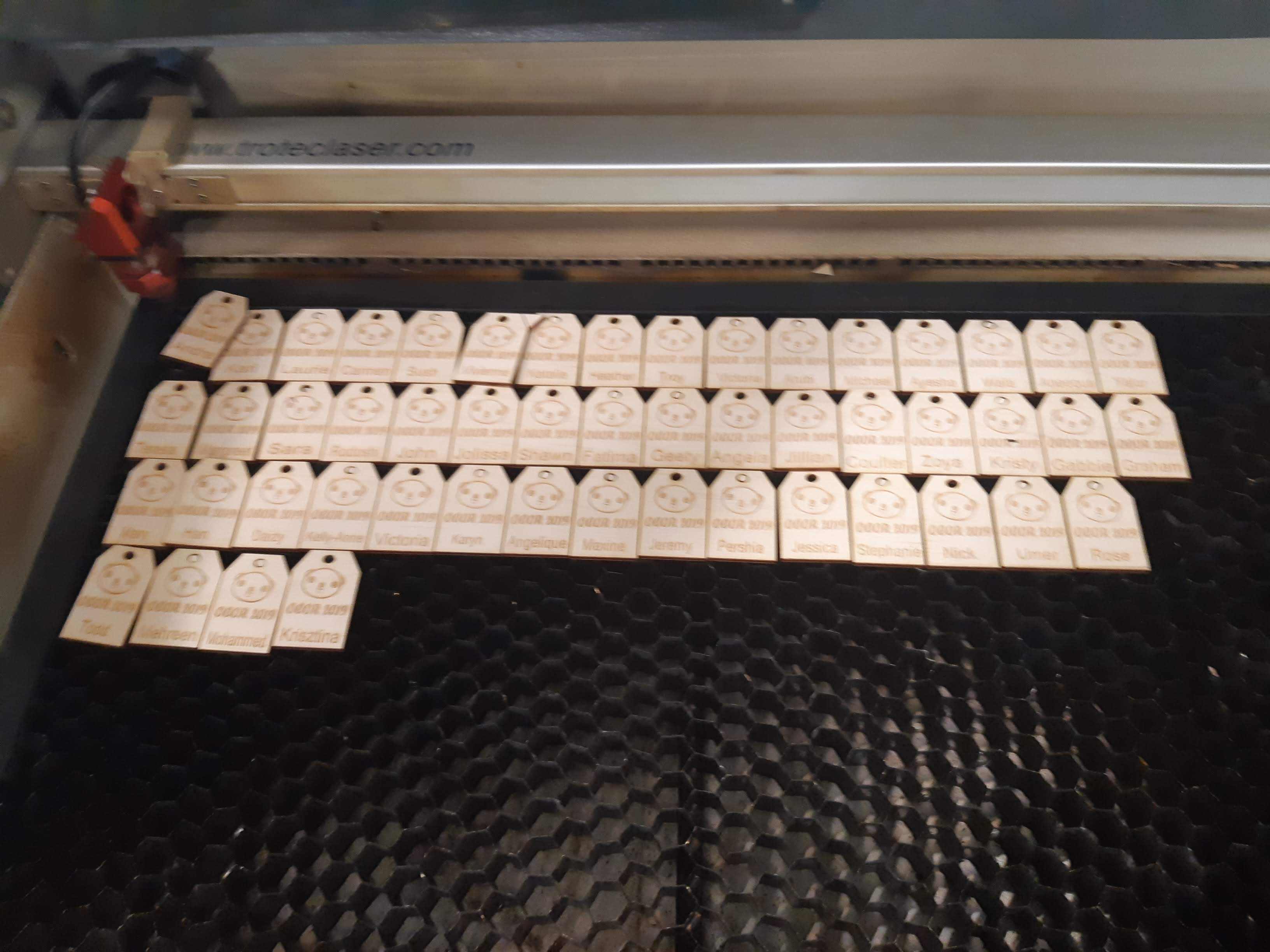

Custom designed and printed keychains for 30+ welcome week representatives

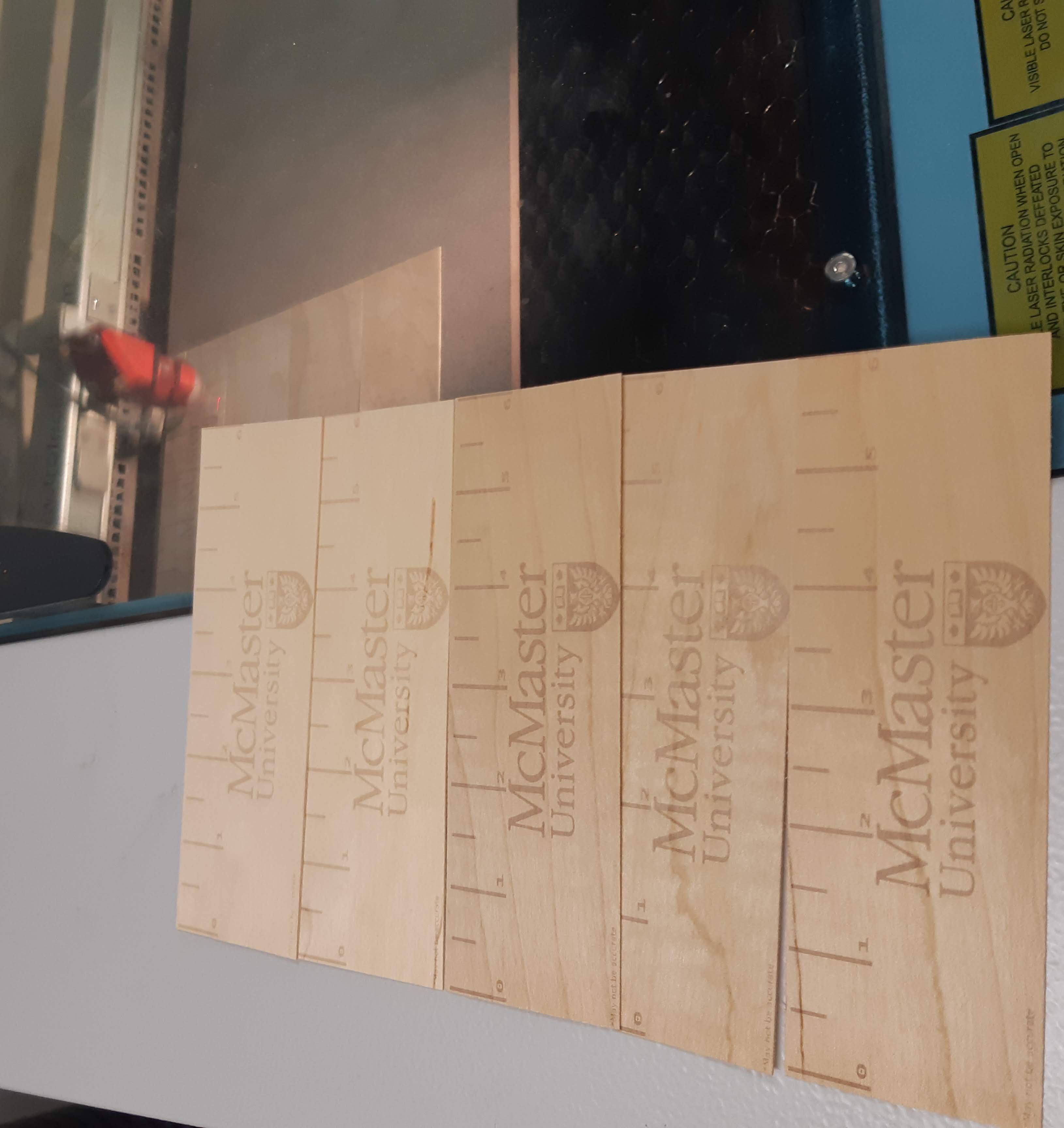

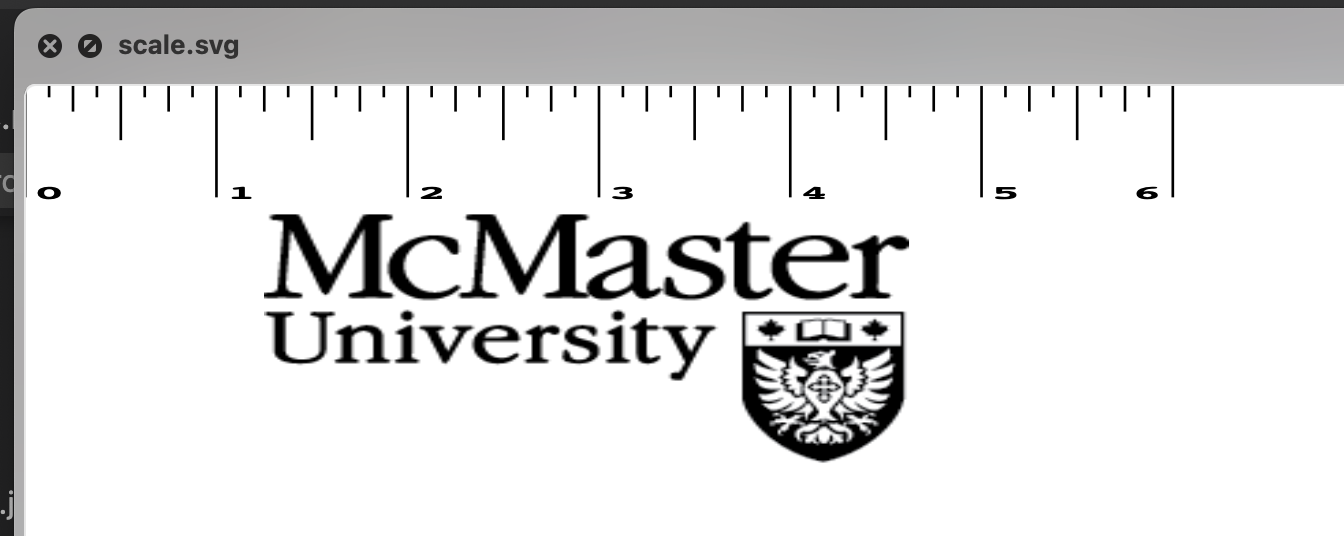

6 inch ruler giveaway at McMaster march break open house

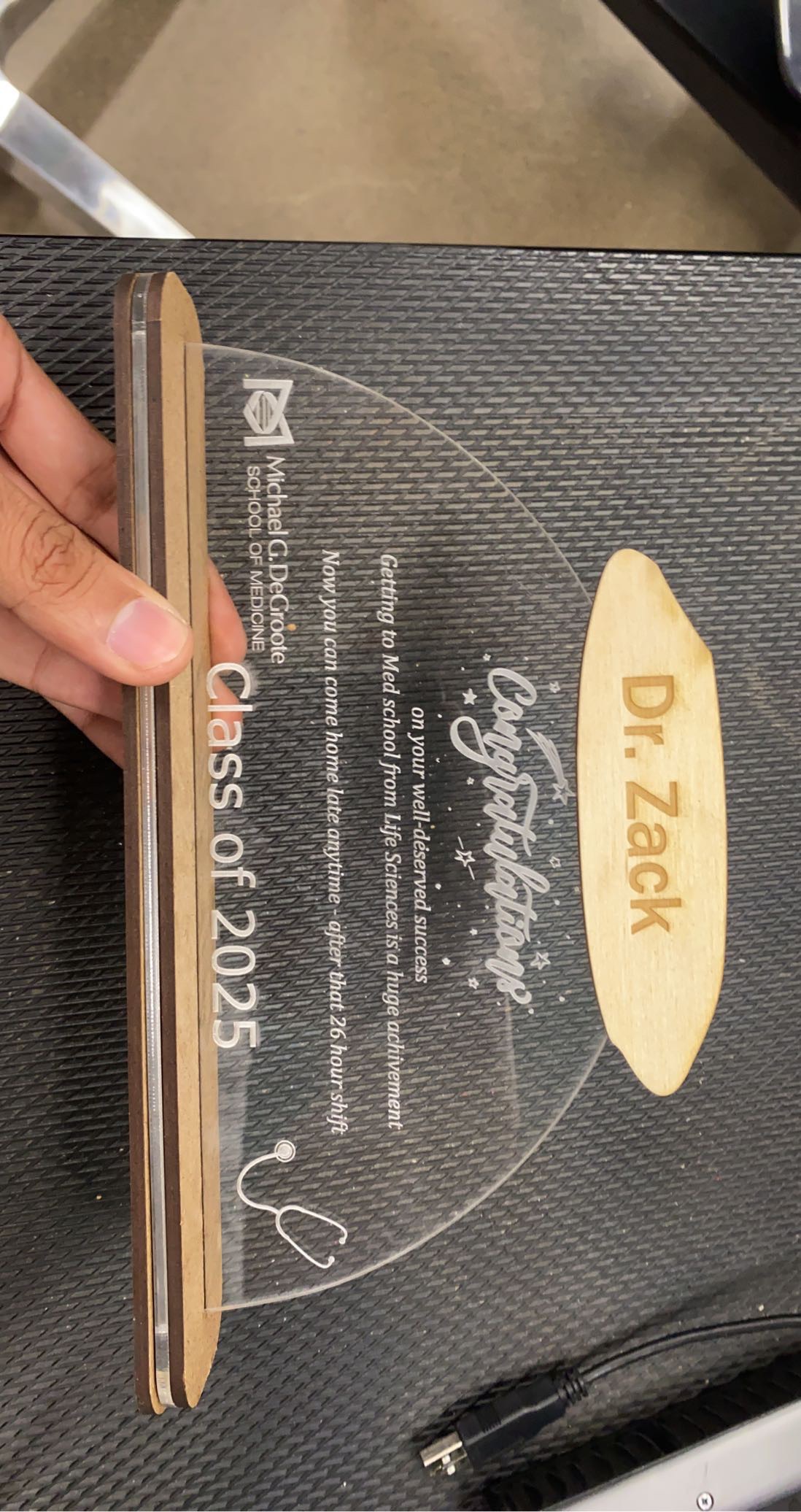

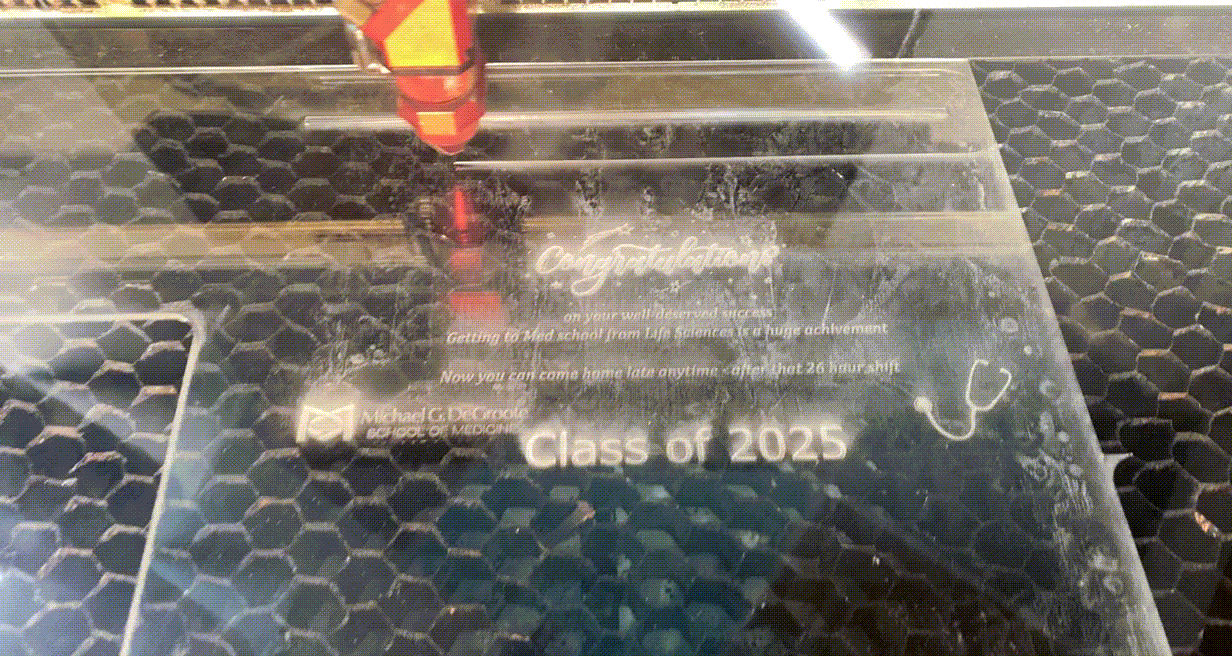

Designed a custom plaque for graduating students

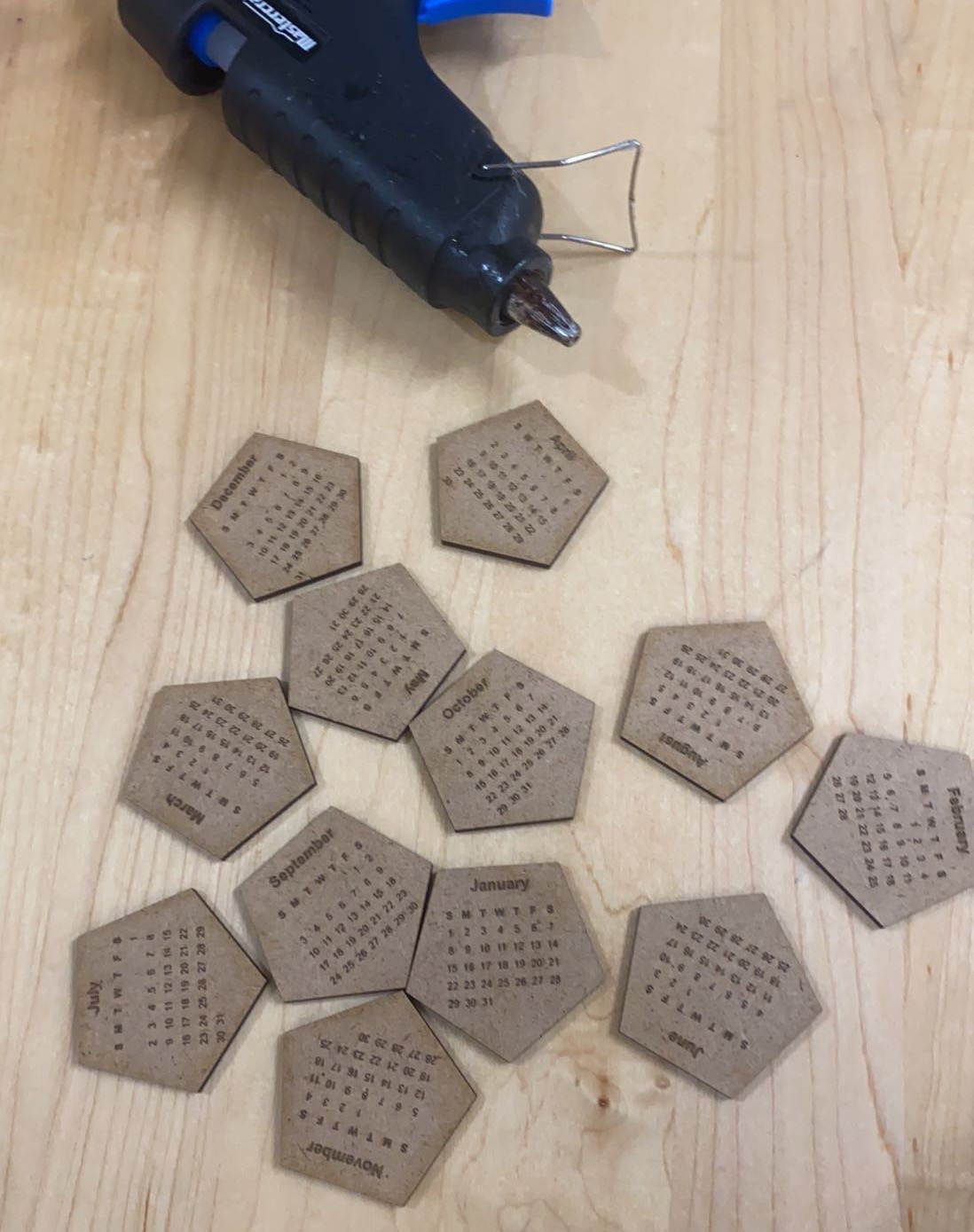

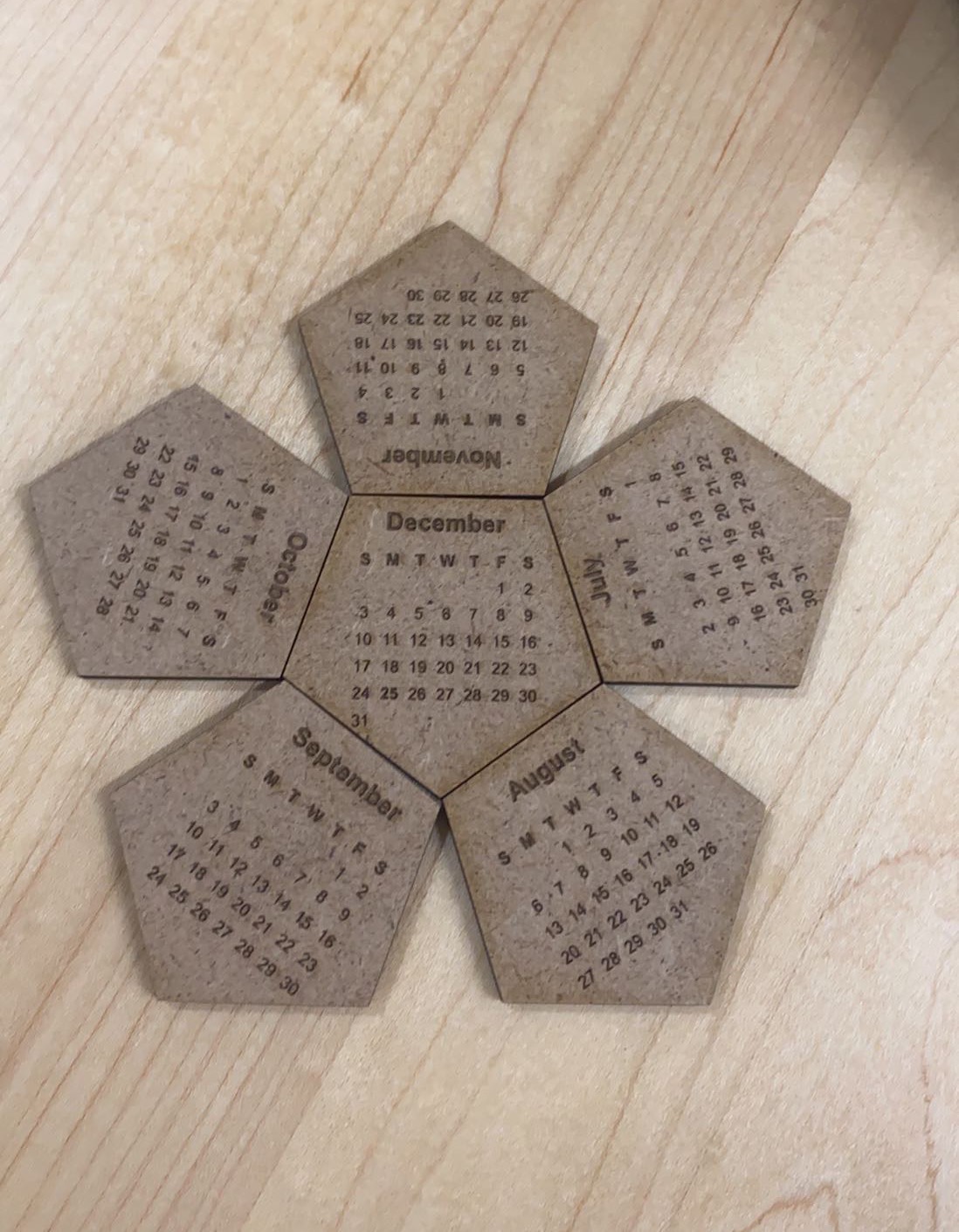

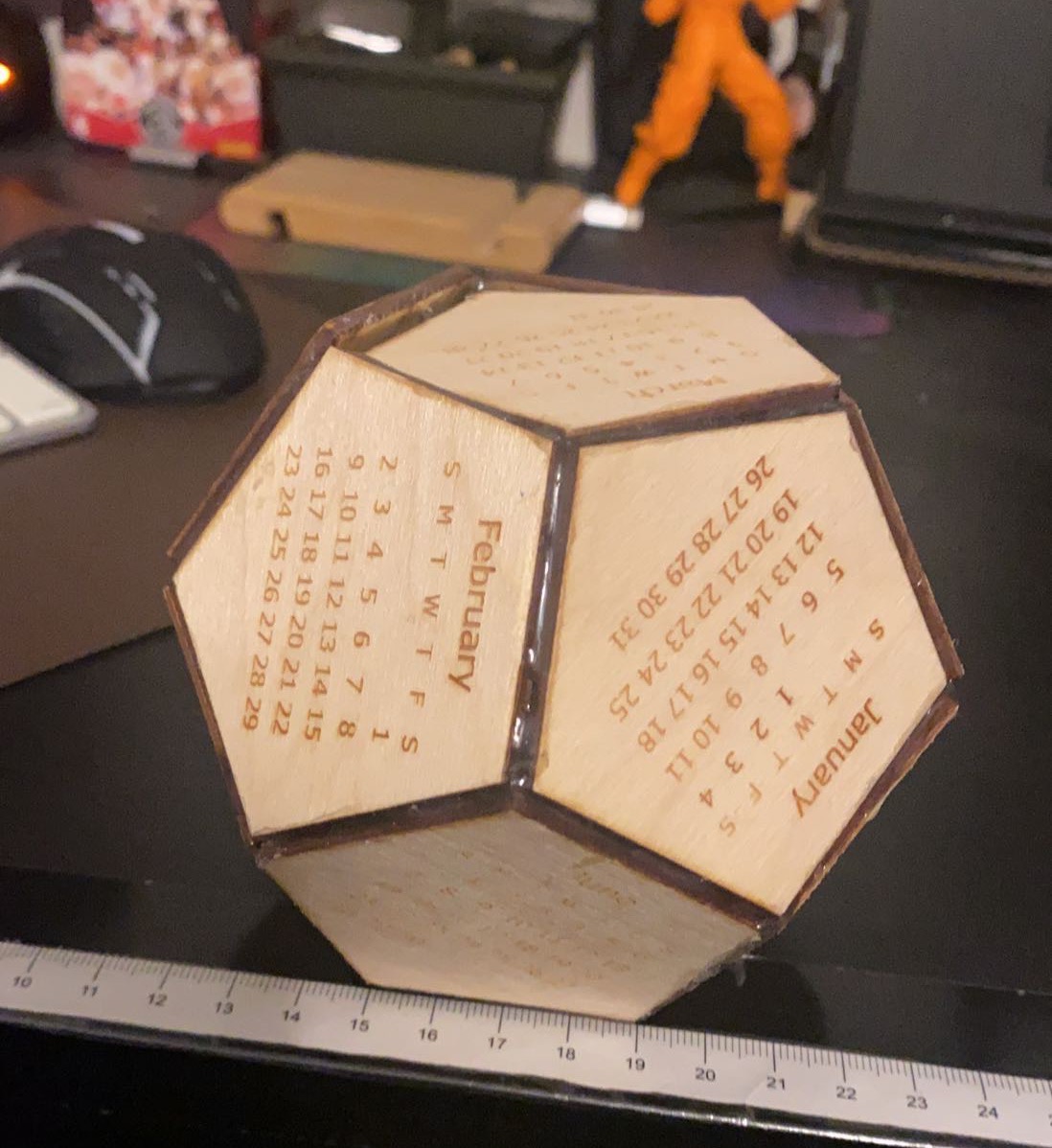

Dodecahedron calendar

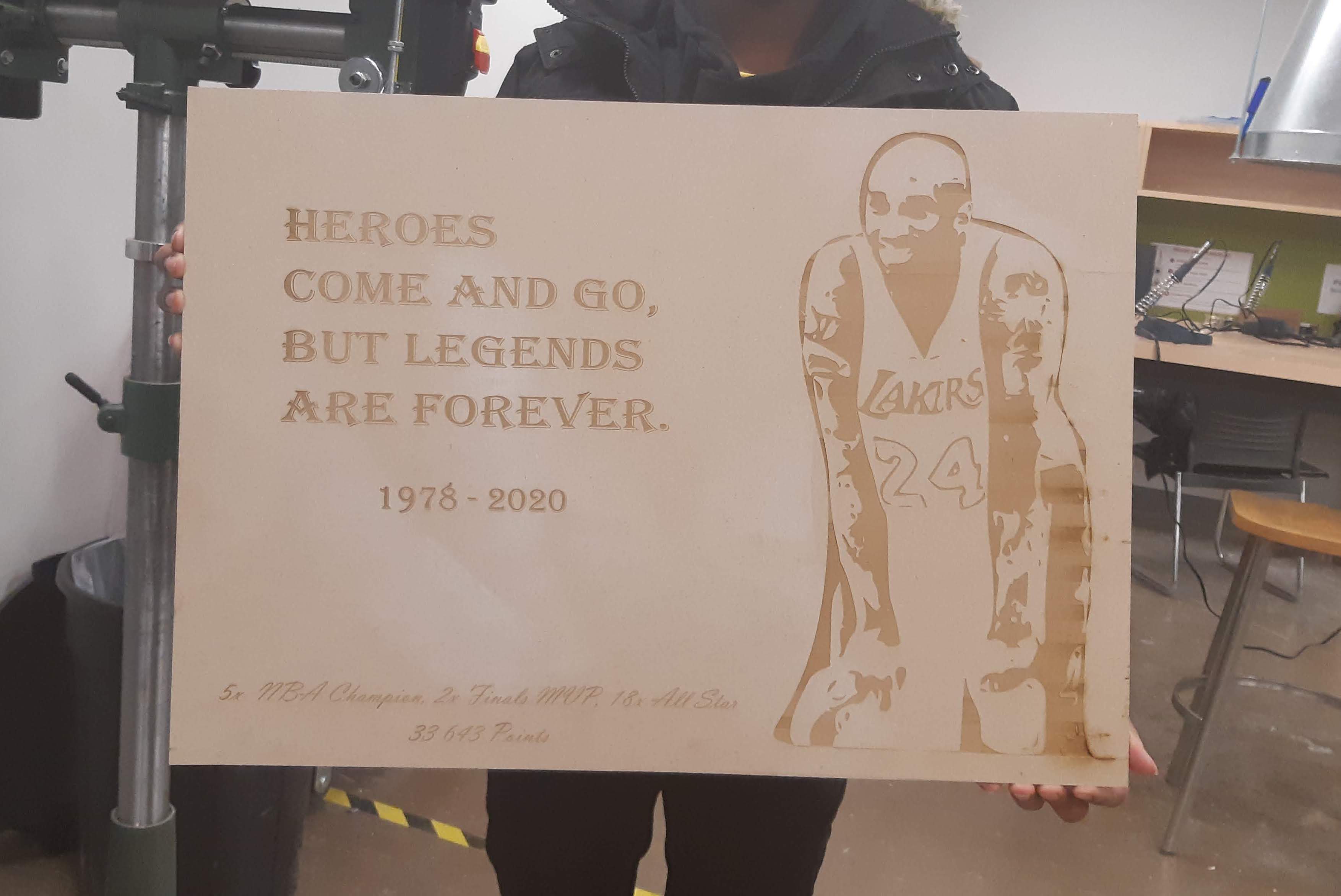

Giant plaque made in honor of Kobe Bryant

Close Project
